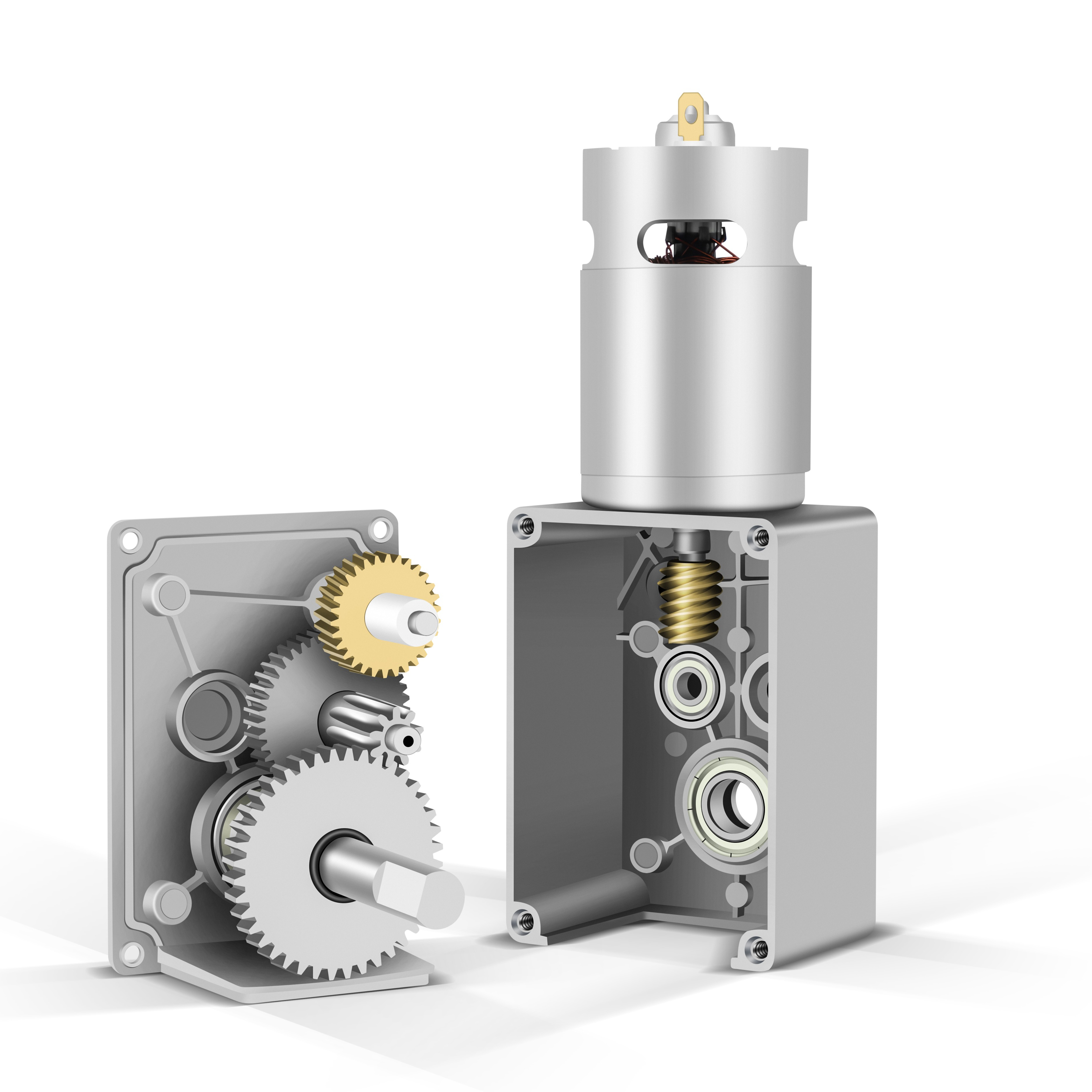

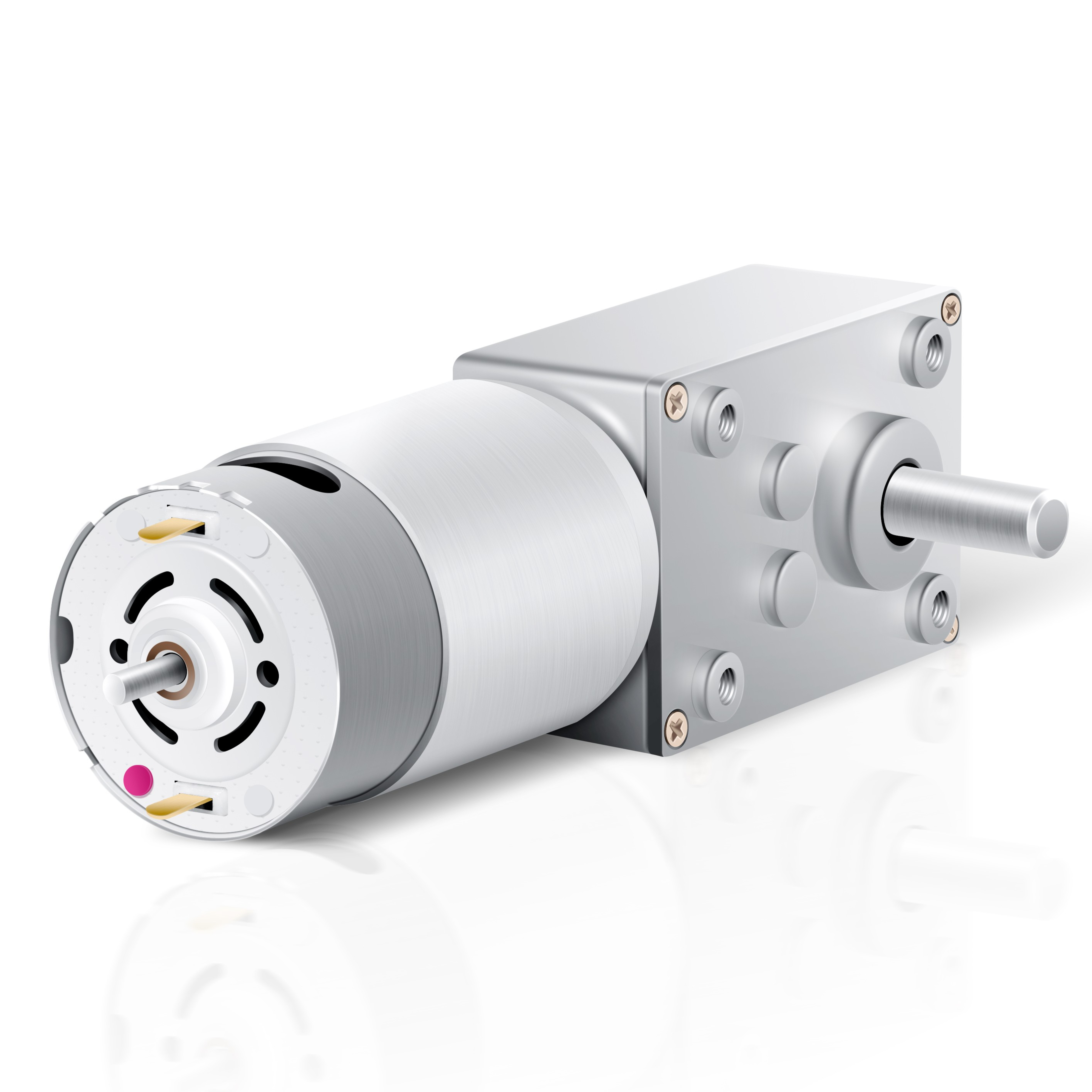

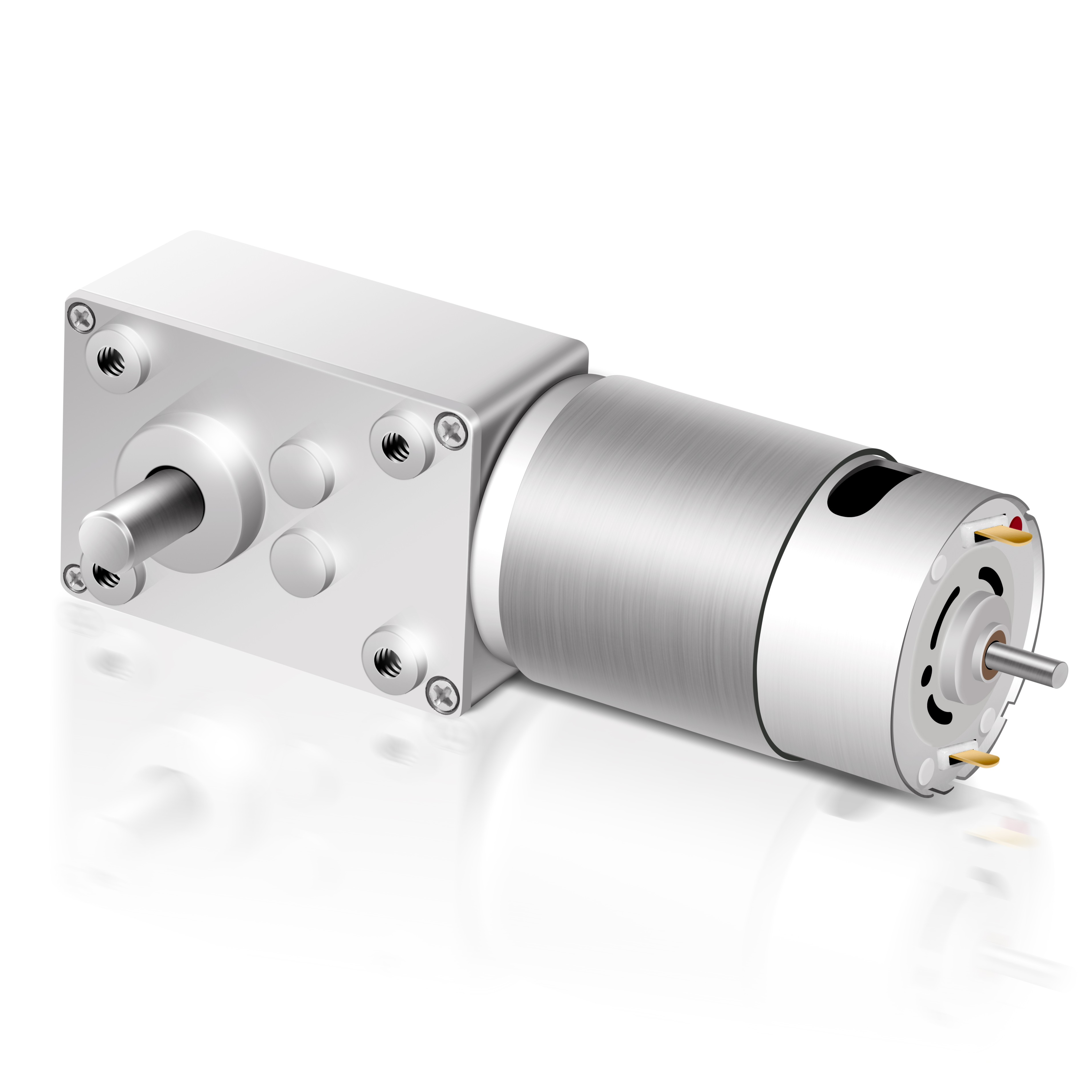

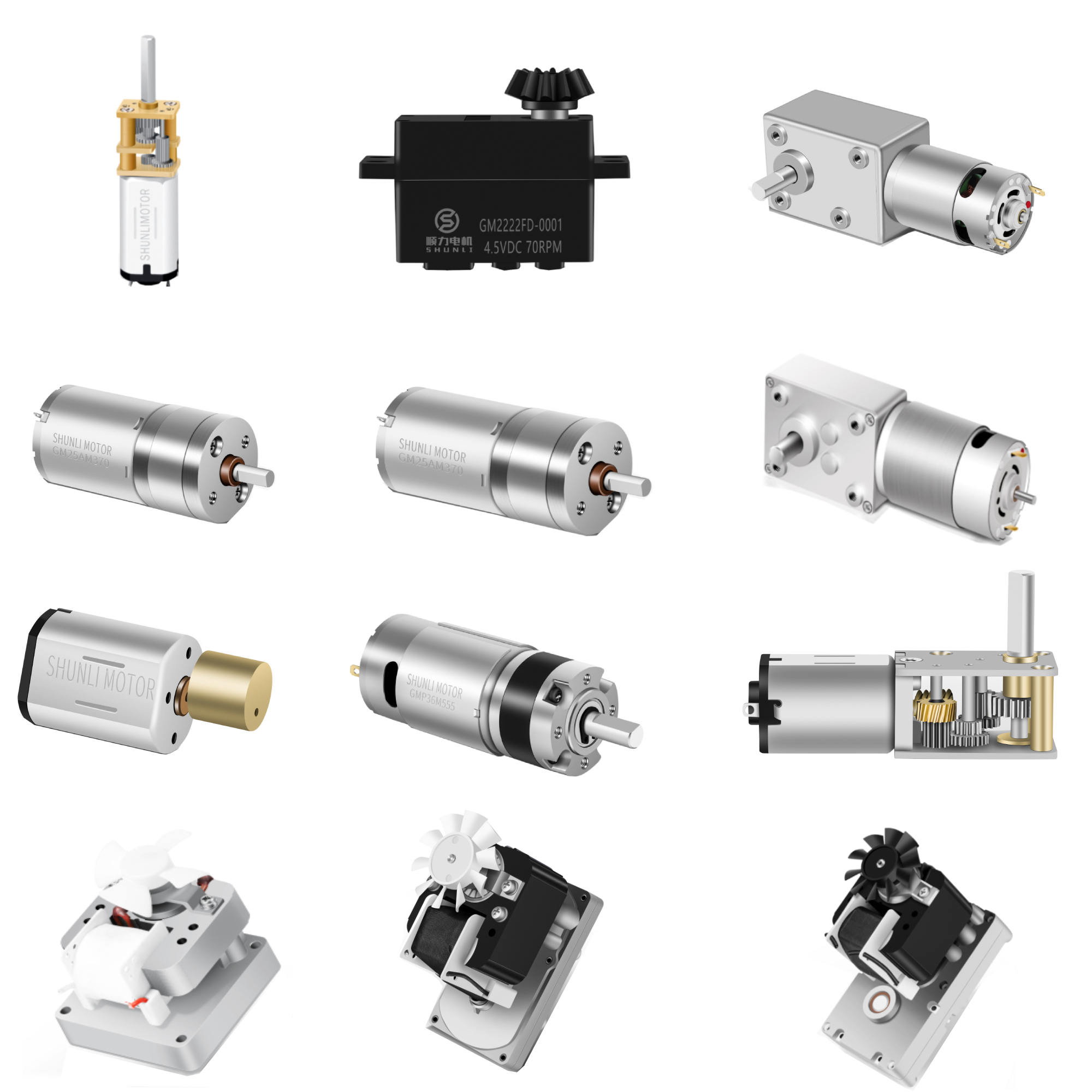

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Product Description
Product Overview
Product Details & Specifications

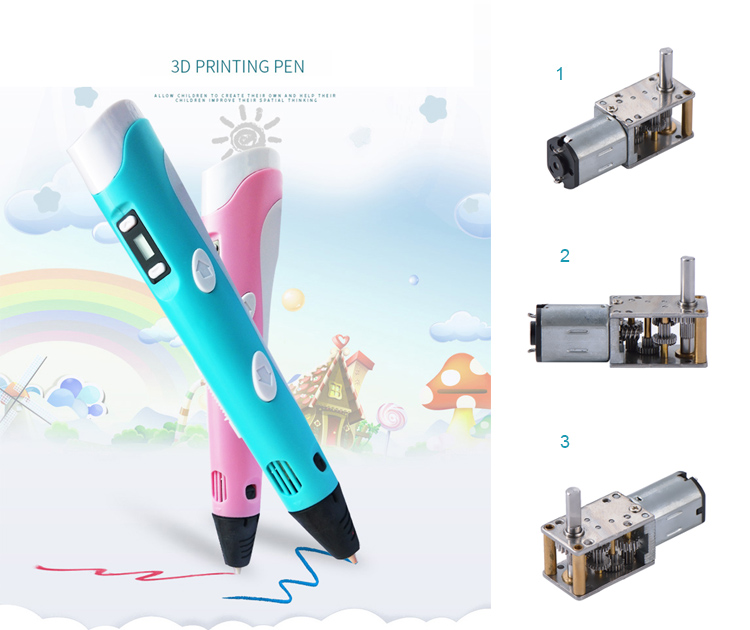

Product Design: Factory 0.8Nm Worm Gear Motor (Brush/Brushless) engineered specifically for 3D Printing Pens and other micro transmission structures.
Gearbox Technical Data
| Parameter | Specification Details |
|---|---|
| Ratio | 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K |
| Max. Rated Torque | 300~800 gf.cm |
| Max. Gear Breaked Torque | 1000~3000 gf.cm |
| Gearbox Efficiency | 12%~35% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM1220EMN20-95K | 1 : 95 | 4.5 VDC | 145 | ≤ 70 | 122 | ≤ 200 | 8 / 80 | ≤ 700 | 75 / 750 |
| GM1220EMN30-1007K | 1 : 1007 | 12 VDC | 25 | ≤ 90 | 22 | ≤ 230 | 120 / 1200 | ≤ 400 | 420 / 4200 |
PMDC Motor Technical Data

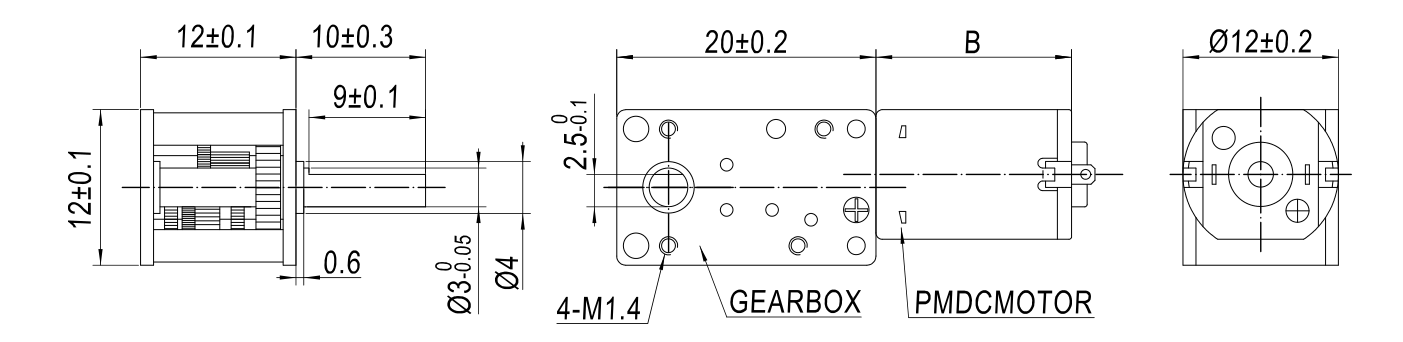

| PMDC Motor Model | Length "B"(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-N20 | 04514000 | 15 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 650 | 1.5 / 15 |
| SL-N30 | 1225400 | 20 | 12 VDC | 25400 | ≤ 50 | 22600 | ≤ 170 | 0.5 / 5 | ≤ 380 | 4.2 / 42 |
Product Applications
Customer Evaluation
Quality Certifications

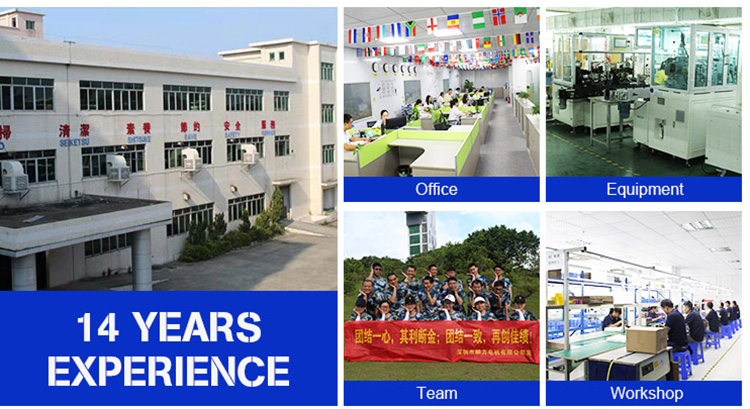

Manufacturing Facility
Established in 2005, the enterprise is a high-tech manufacturer integrating the research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and special gearbox motors. The products are widely used in automobiles, communications equipment, smart homes, medical equipment, intelligent security, household appliances, Western kitchen equipment, machinery, electronics, and other high-end transmission structures. These products are exported to more than 50 countries and regions worldwide.
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can arrange an online assurance order for our new customers, which can be paid online via Mastercard, Visa, etc. Customers can also choose to pay with PayPal, T/T, or other methods.
I cannot find a suitable motor on the website. Can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other certifications. If you have additional certification requirements, we can apply for them on your behalf.
How is your Quality Control managed?

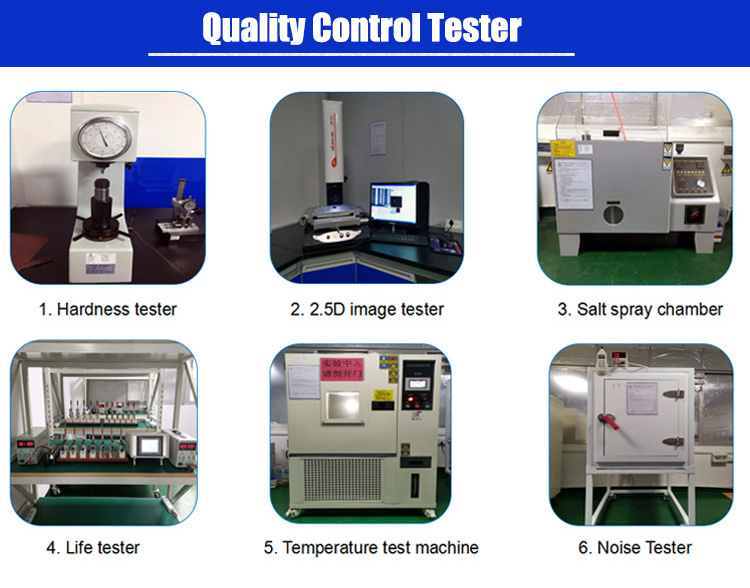

We have professional inspection staff on every production line process. Once the motor is complete, we use a range of specialized testing machinery, such as a Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise Tester.
