Valex Motor
12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

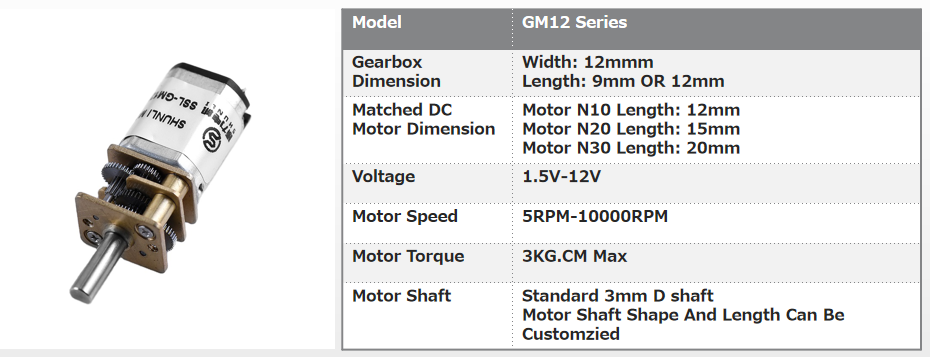

Product Description
Product Description

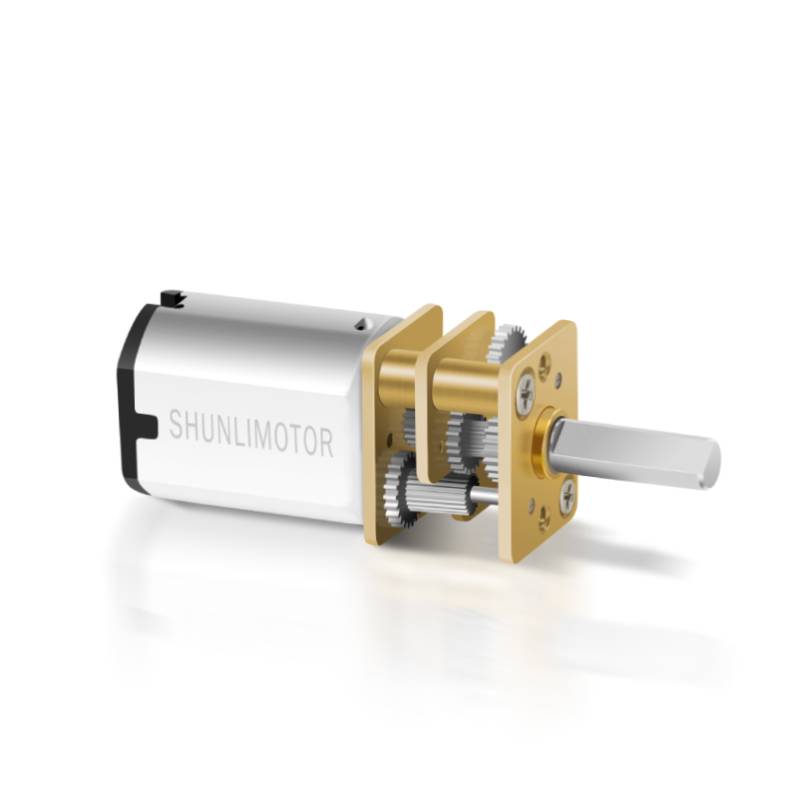

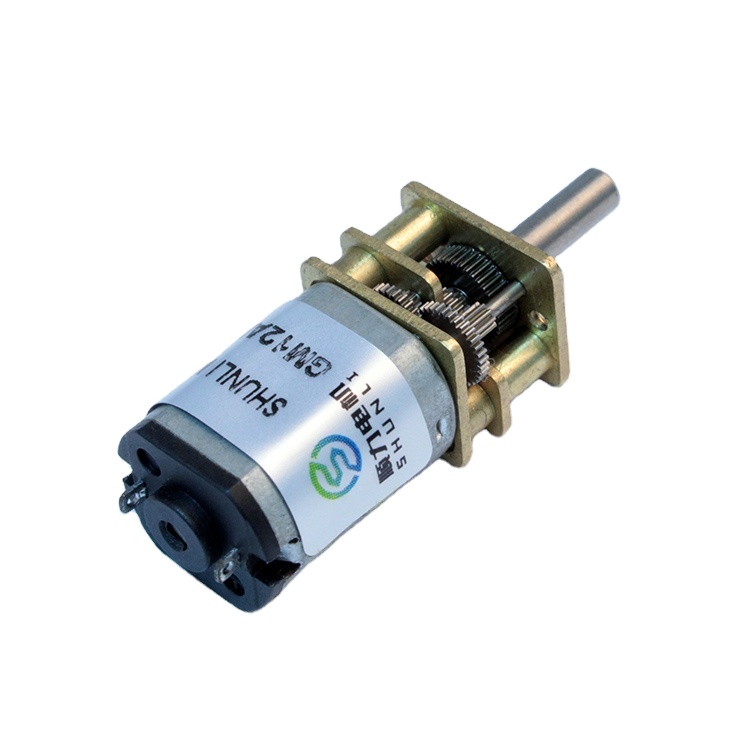

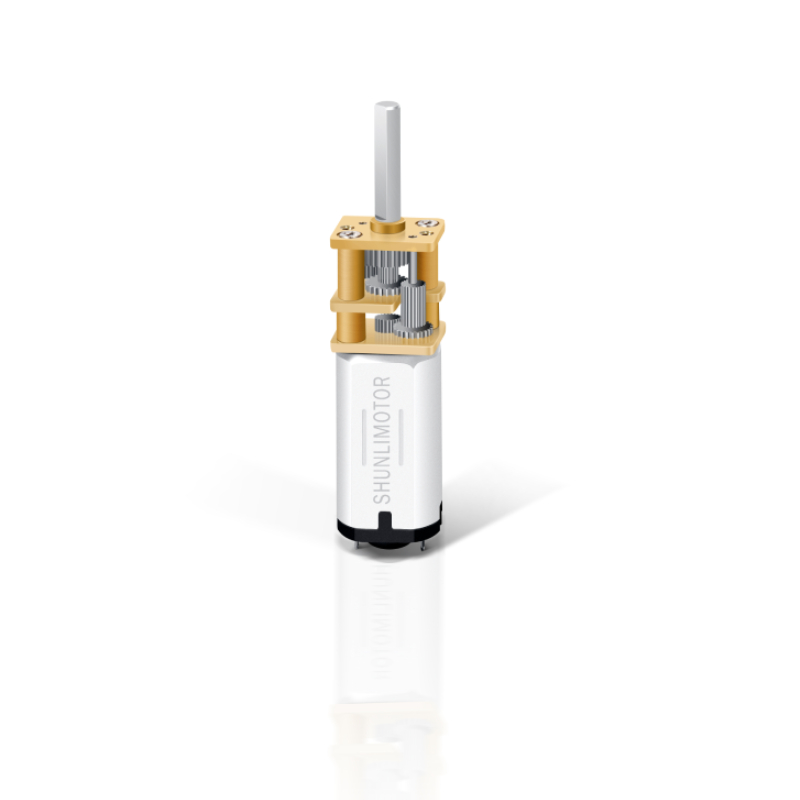

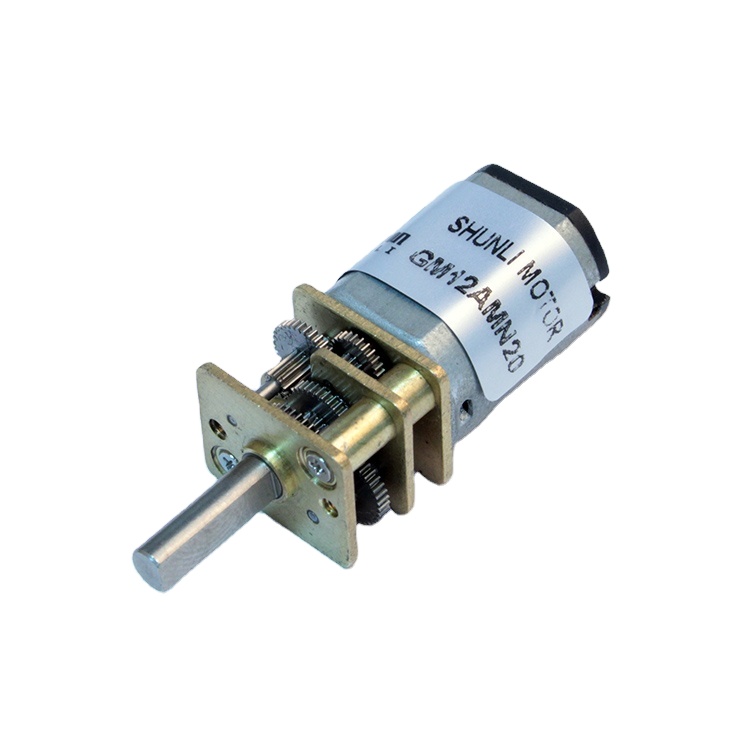

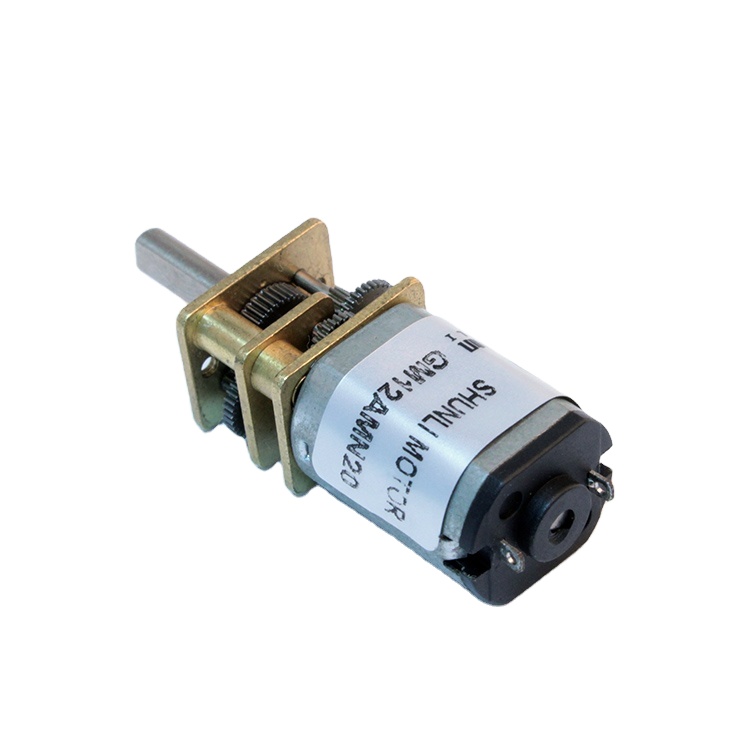

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

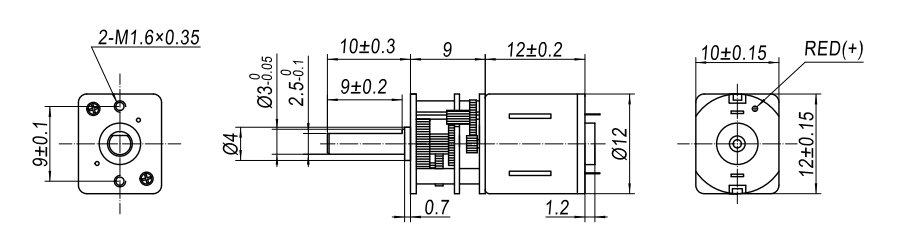

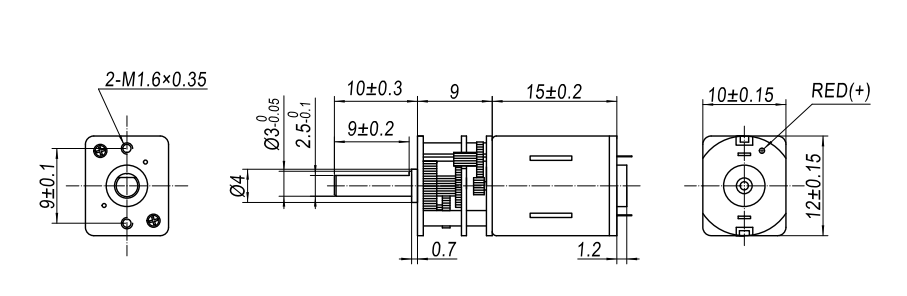

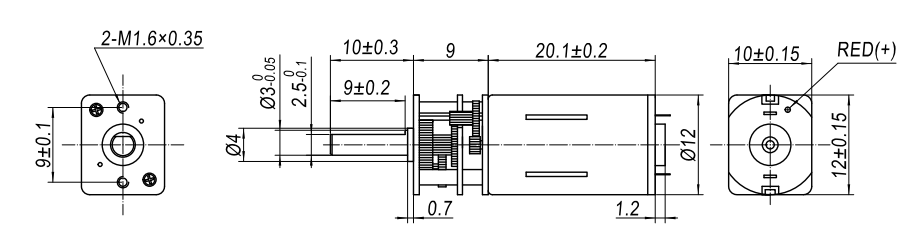

Reference Drawing

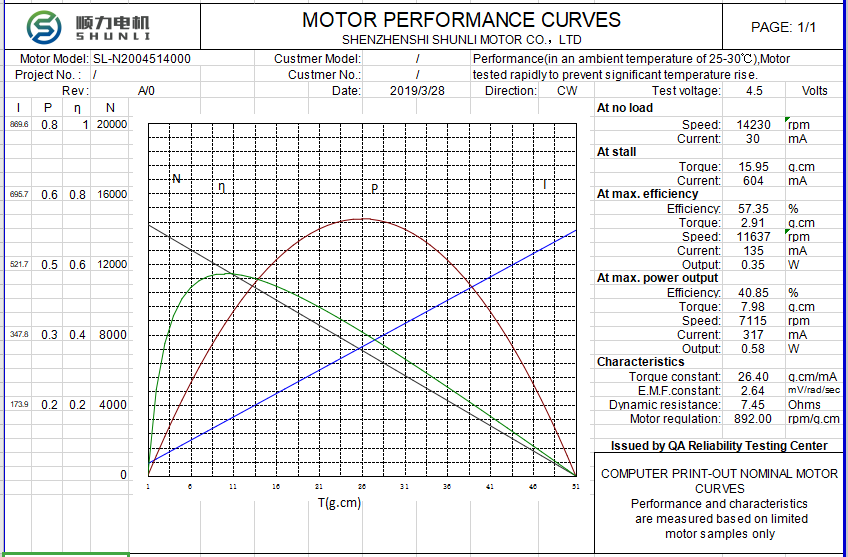

Reference Datasheet
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |
| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |
| GM12AMN30-10K | 1: 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
| Number of stages | 2 | 4 | 5 | 7 |
|---|---|---|---|---|
| Gearbox Length āLā(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/ 50K/63K/100K |
110K/150K/210K/ 250K/298K/380K |
372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
Application
Certifications
Customer Evaluation
Why Choose Us
1. Production Capabilities
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team, mature management, and experienced engineering sales team will bring you a pleasant purchasing experience.
2. Quality Control
In order to confirm quality, every step of the process from receiving materials to final shipment is carefully checked. Quality is the basis of our development.
Our Services
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can arrange secure online assurance orders which can be paid via credit cards (Master Card, Visa, etc.), PayPal, or T/T wire transfer.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize parameters, dimensions, and specifications according to our customer's requirements.
Q4: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, and other relevant compliance certificates. If you need other specific certificates, we can apply for them.
Q5: How is your Quality Control?
A: We have dedicated inspection personnel on each production line. Finished motors undergo comprehensive machine testing including Hardness Testing, 2.5D Image Analysis, Salt Spray Tests, Life Testing, Temperature Chamber Testing, and Noise Testing.
Q6: What is the typical lead time for samples?
A: Standard samples are produced within 2 weeks, while customized specifications or components may take up to 3 weeks.
