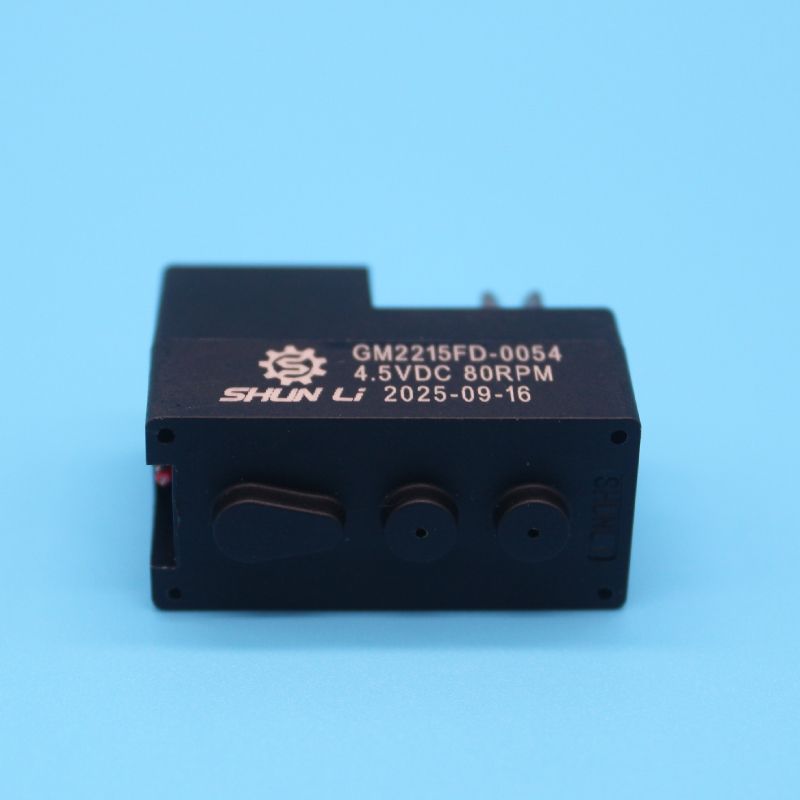

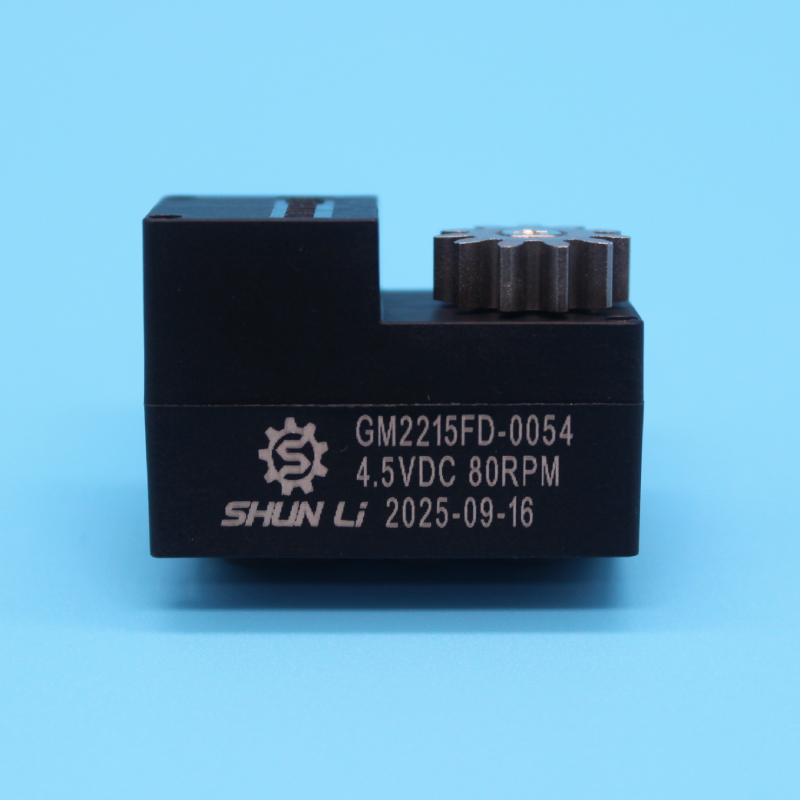

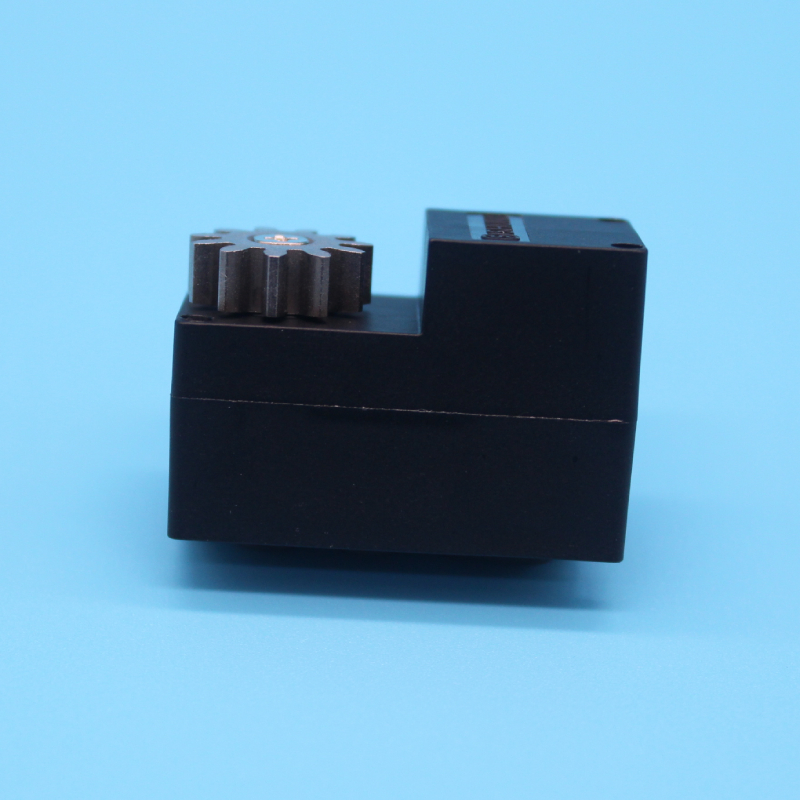

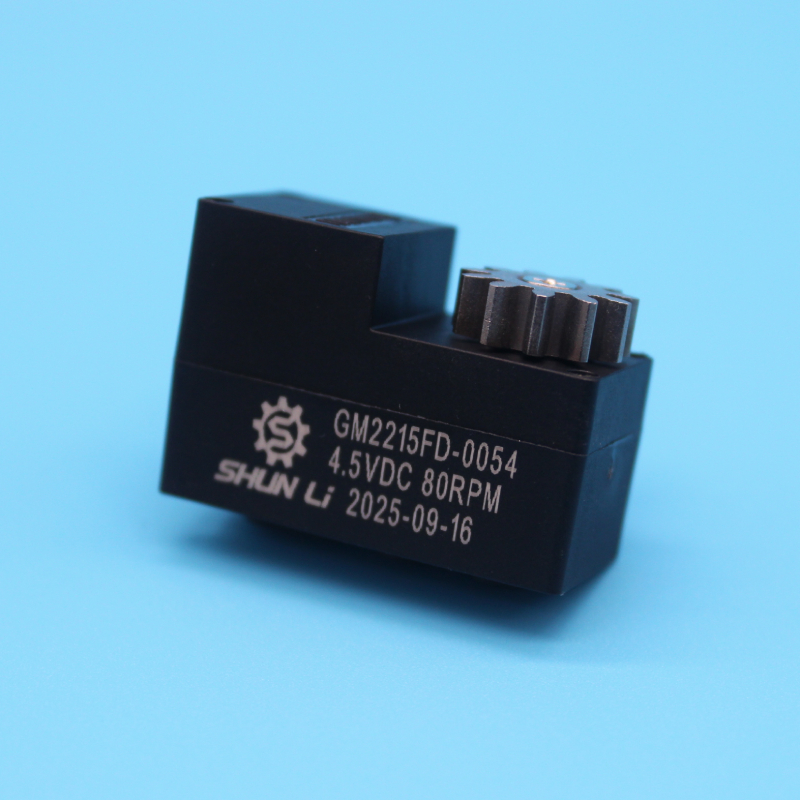

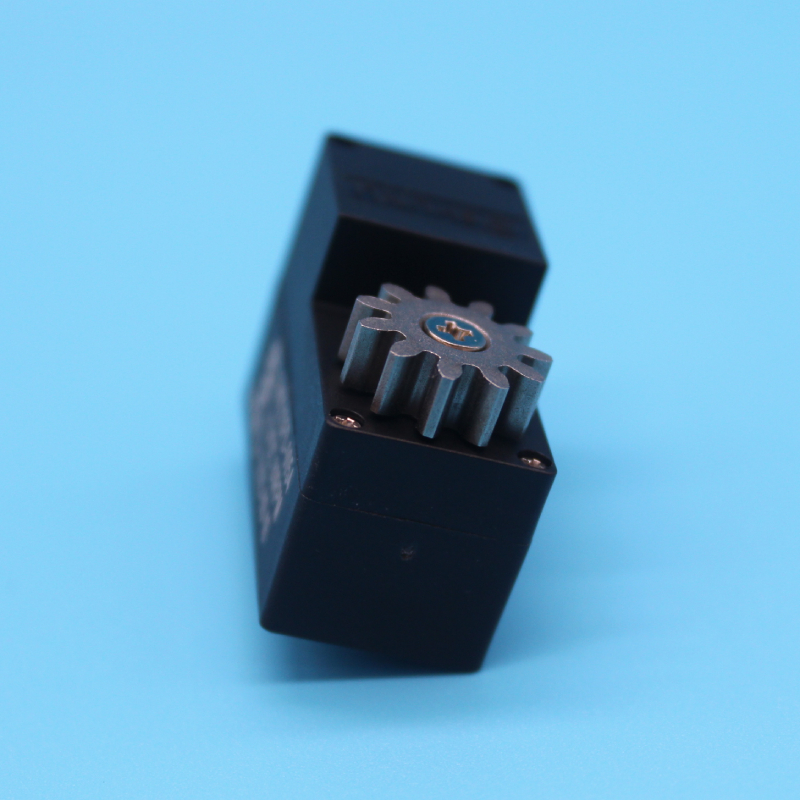

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Product Description
Product Description
Smart lock motor steering gear automatic door lock micro motor gearbox reduction motor
Customized Specification

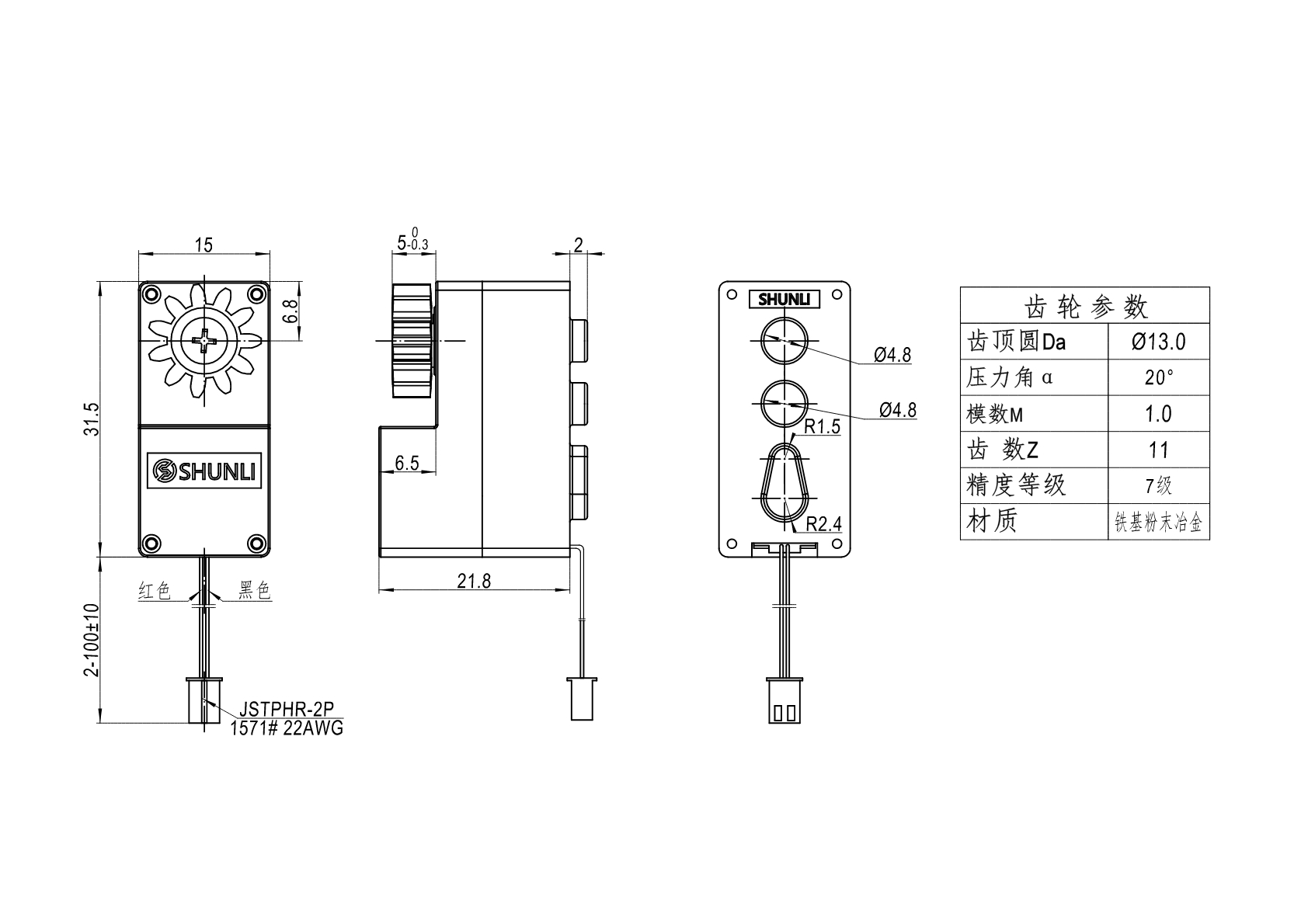

Reference Drawing — GM2215

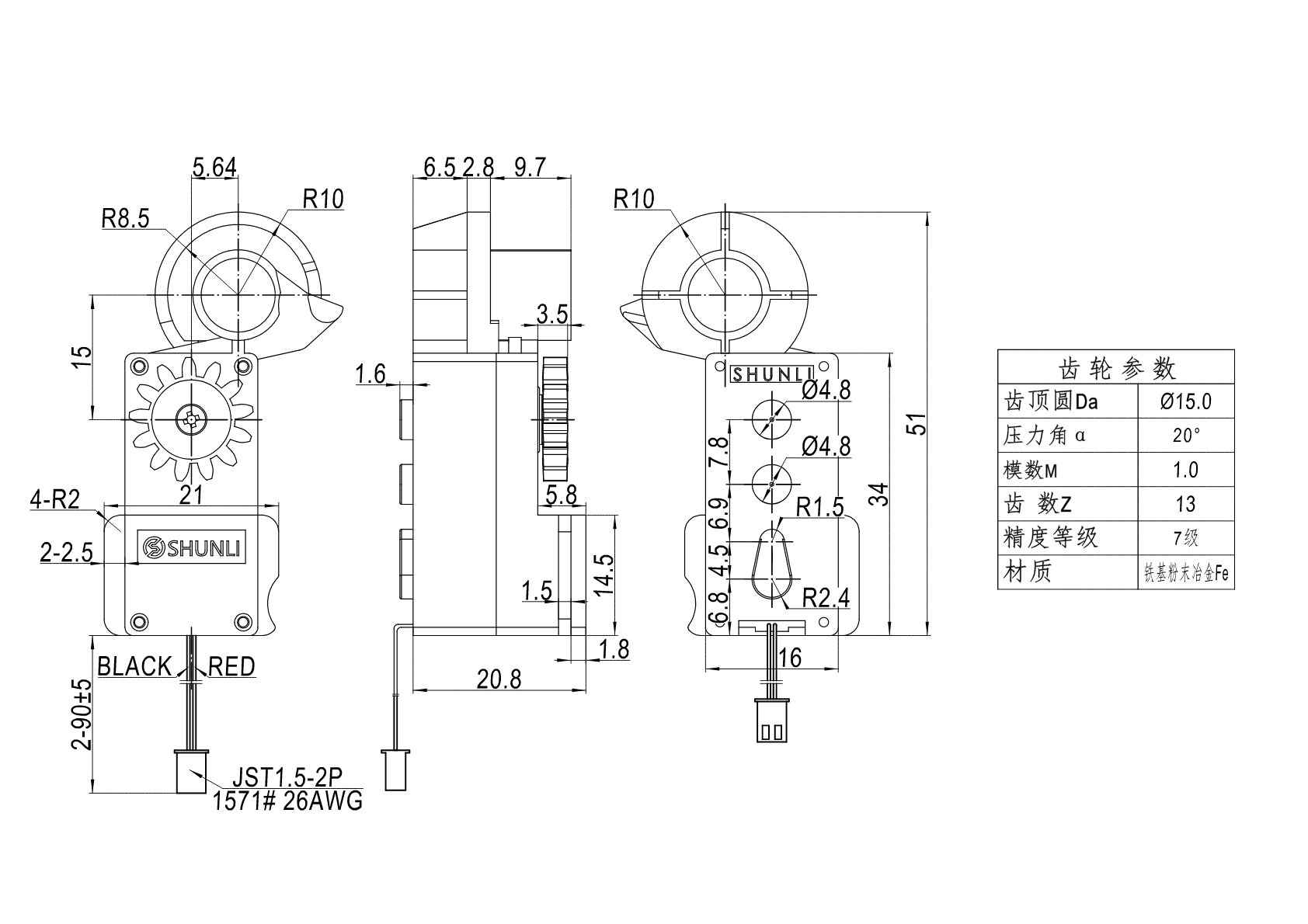

Reference Drawing — GM2219
Reference Datasheet
Gearbox Technical Data
| Parameter | Specification Details |
|---|---|
| Ratio | 199K / 241K / 265K |
| Max. Rated Torque | 1.5 ~ 2.5 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||
| GM2215FMN20-199K | 1 : 199 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 1.8 |
| GM2222FMN20-230K | 1 : 230 | 4.5 VDC | 58 | ≤ 78 | 49 | ≤ 135 | 24 / 240 | ≤ 450 | 0.2 / 2.0 |
| GM2219FMN20-265K | 1 : 241 | 4.5 VDC | 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 |
| GM2219FMN20-265K | 1 : 241 | 4.5 VDC | 62 | ≤ 75 | 51 | ≤ 140 | 35 / 350 | ≤ 750 | 0.22 / 2.2 |
Product Gallery
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors with extensive manufacturing experience of more than 14 years.
Q2: What is the payment term for a new customer?
A: Online orders can be set up for convenience, allowing secure online payments with MasterCard, Visa, PayPal, or TT wire transfers.
Q3: Can you customize a motor if I cannot find a suitable one on the website?
A: Yes. Customized designs can be developed to align precisely with your performance requirements and design specifications.
Q4: Do you have certifications for your micro motors?
A: Yes, our products are compliant with standards such as CE, FCC, ISO, and others. Additional certifications can be sought upon request.
Q5: How do you handle quality control and performance checks?

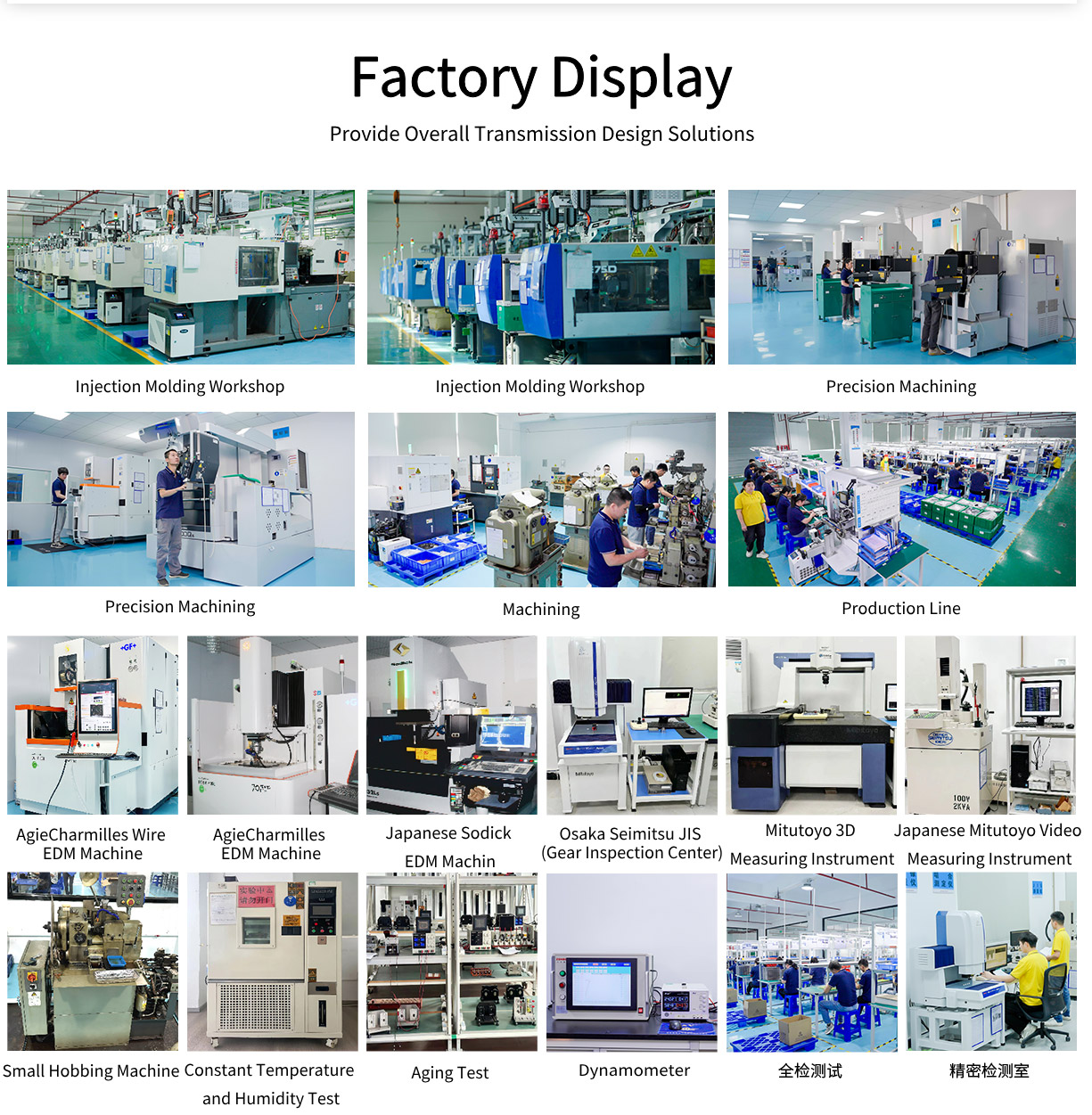

A: Quality is managed through professional checking staff stationed along the production lines, coupled with advanced testing machinery (including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers).
Q6: Are customized specifications and dimensions provided beforehand?
A: Yes, detailed datasheets and reference drawings, such as GM2215 and GM2219, are supplied to support planning and development processes.
