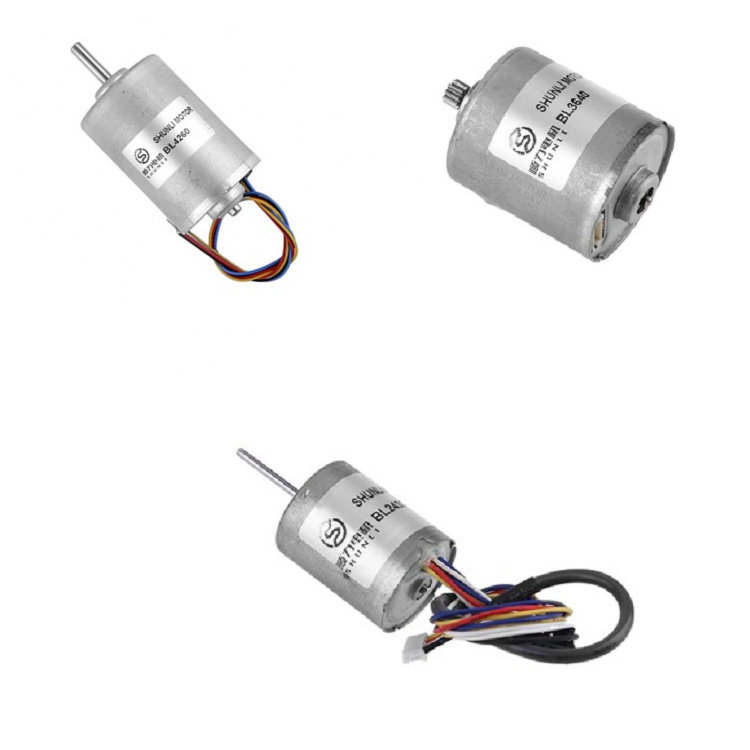

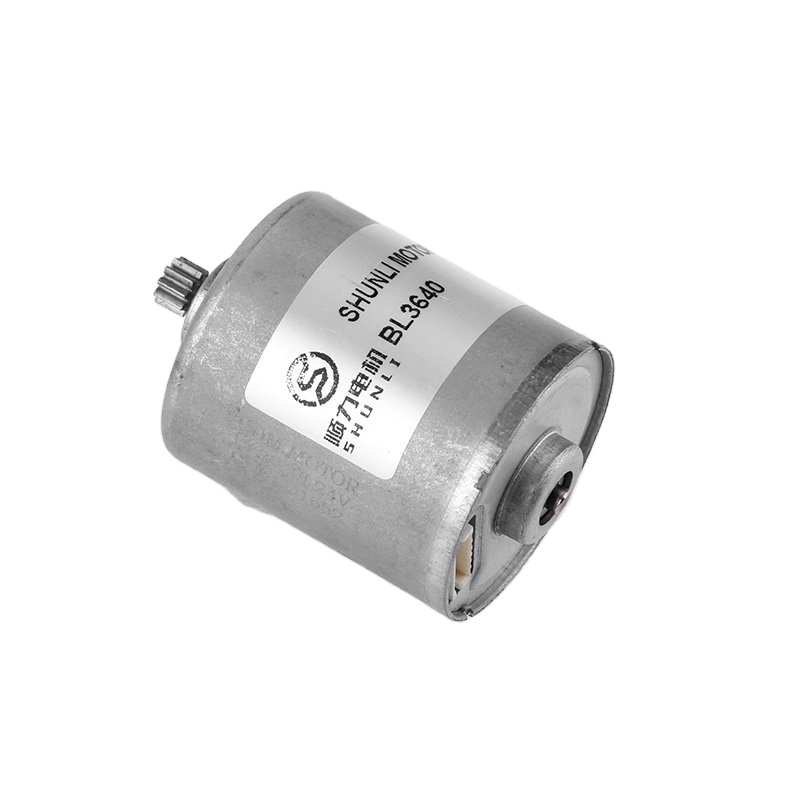

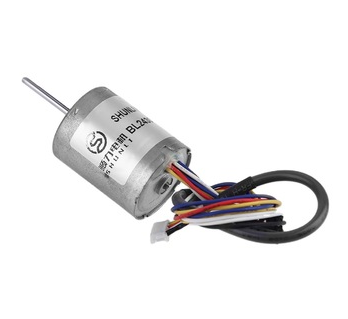

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
Product Description
12V 18V 24V high speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC motor for fan
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
What are the available voltage options for this high-speed brushless DC motor?
This high-speed brushless DC motor is designed to operate efficiently across multiple voltage ratings, including 12V, 18V, and 24V configurations, making it adaptable to various application standards.
What speed levels can this motor reach?
The motor is engineered for ultra-high-speed operations, offering performance thresholds of 20,000 RPM, 30,000 RPM, and up to 40,000 RPM depending on the model setup and load characteristics.
What functions do the 5 pins on the BLDC motor terminations serve?
The 5 pins include VCC (Power), FG (Frequency Generator/Speed feedback), CW/CCW (Clockwise/Counter-Clockwise direction control), GND (Ground), and PWM (Pulse Width Modulation for speed regulation).
Can the technical specifications of this motor be customized?
Yes, customization is available for motor specifications. You can submit parameters such as specific voltage requirements, target RPM, or physical dimension needs for tailormade configurations.
What is the diameter size of this brushless DC motor?
This high-speed brushless DC motor features a standard diameter size of 36 mm, making it suitable for compact cooling fan setups and electronic appliances requiring localized high airflow.
