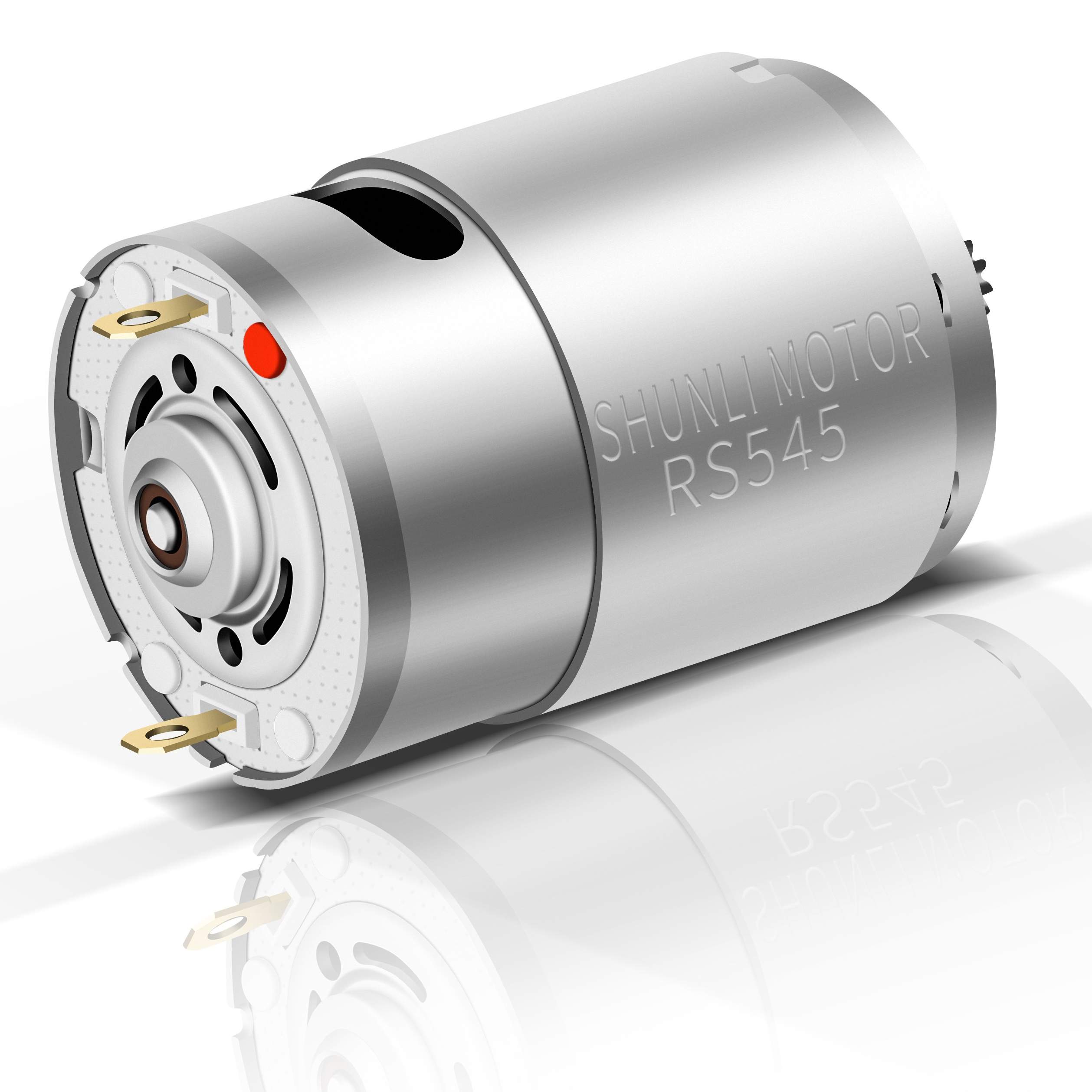

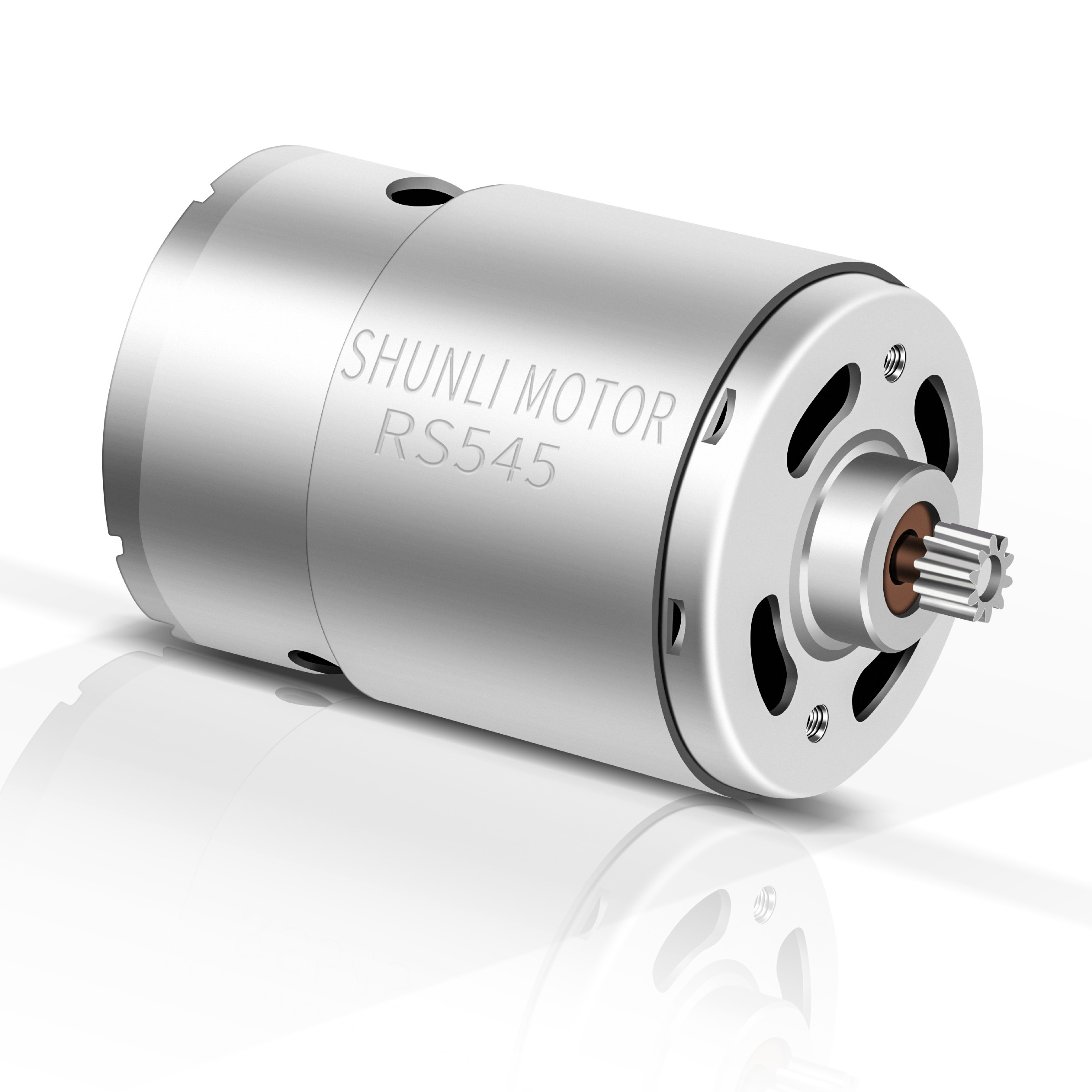

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor
Product Description
6v 12v 24v micro motor electric car motor micro dc motor
Product Details
Motor Customized Specification Available

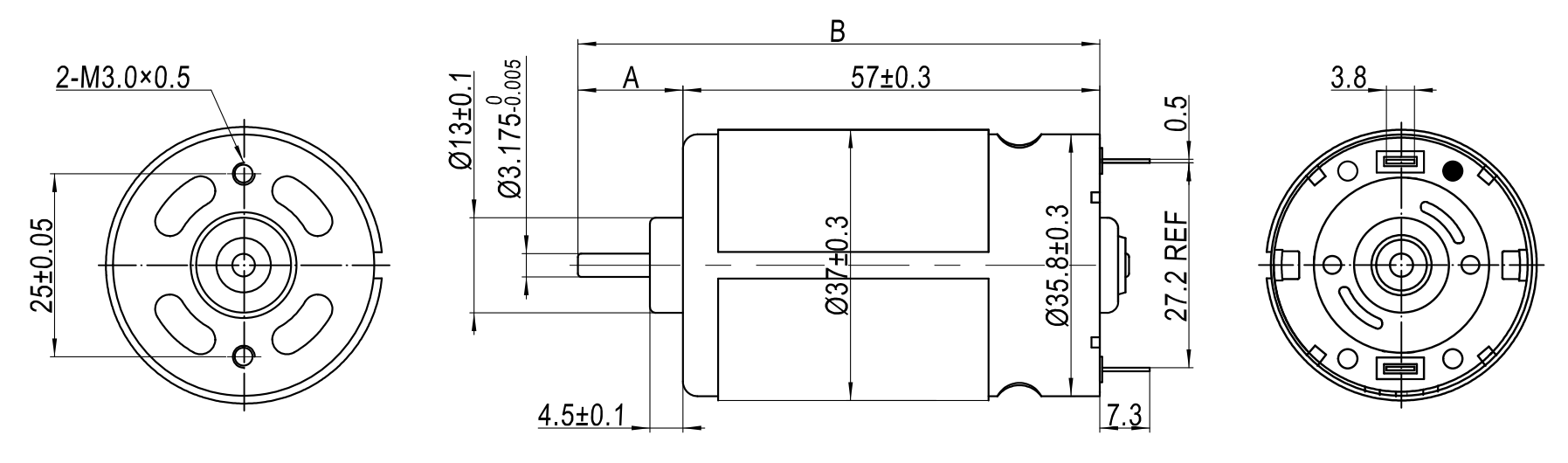

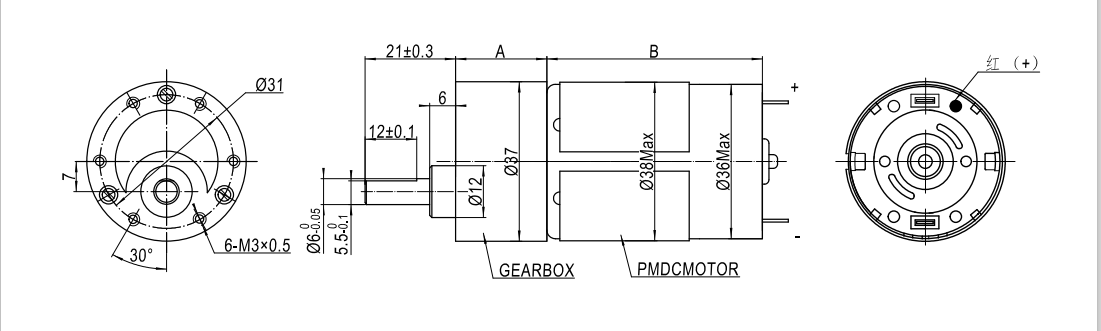

Reference Drawing
RS - 545 A
RS - 555 A
RS - 575 A
The length of shaft can be customized.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |
Recommend Product
Frequently Asked Questions (FAQ)
Q1: What voltage options are available for these micro DC motors?
A1: These micro DC motors support standard operating voltages of 6V, 12V, and 24V, catering to various electronic device specifications.
Q2: Can the motor shaft length be customized?
A2: Yes, the length of the shaft can be fully customized based on your specific requirements and application design.
Q3: Are these micro motors suitable for electric car applications?
A3: Absolutely. These high-performance PMDC motors are optimized for electric toy cars, smart appliances, and precision drive systems.
Q4: What models are documented in the PMDC technical datasheet?
A4: The technical datasheet includes detailed performance parameters for models such as RS-550H and RS-555H under different load conditions.
Q5: Can I request customized motor specifications?
A5: Yes, customized specifications regarding operating voltage, speed, current, and torque ranges are fully supported to meet your engineering targets.
Q6: What is the maximum speed these micro motors can achieve?
A6: Depending on the specific model and voltage parameters, these micro motors can reach speeds up to 16,000 RPM as shown in the datasheet.
