Valex Motor

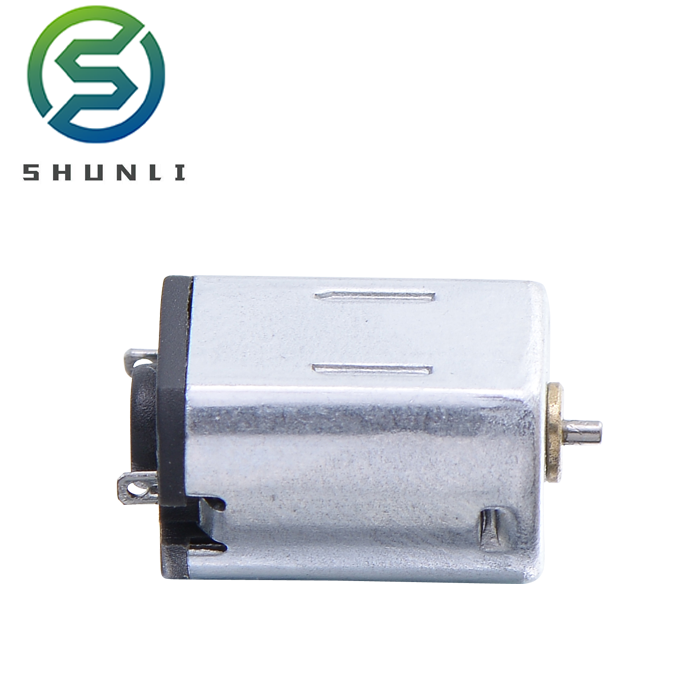

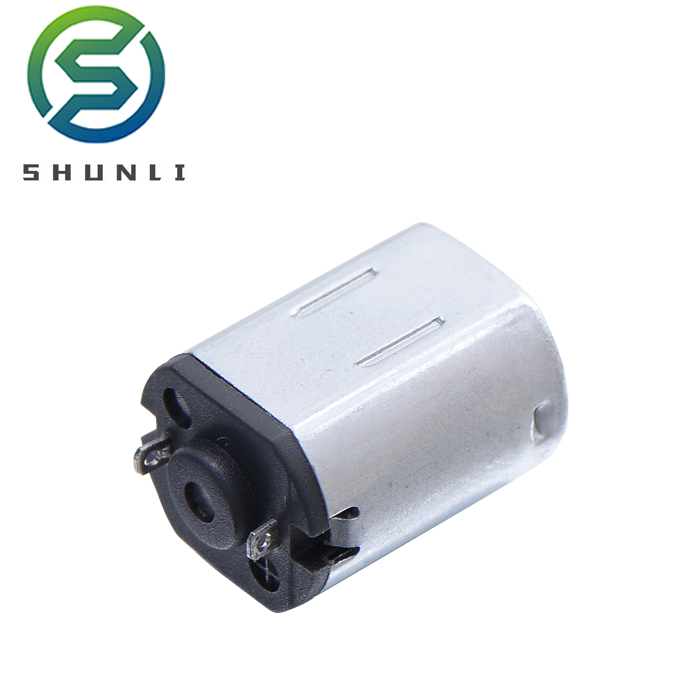

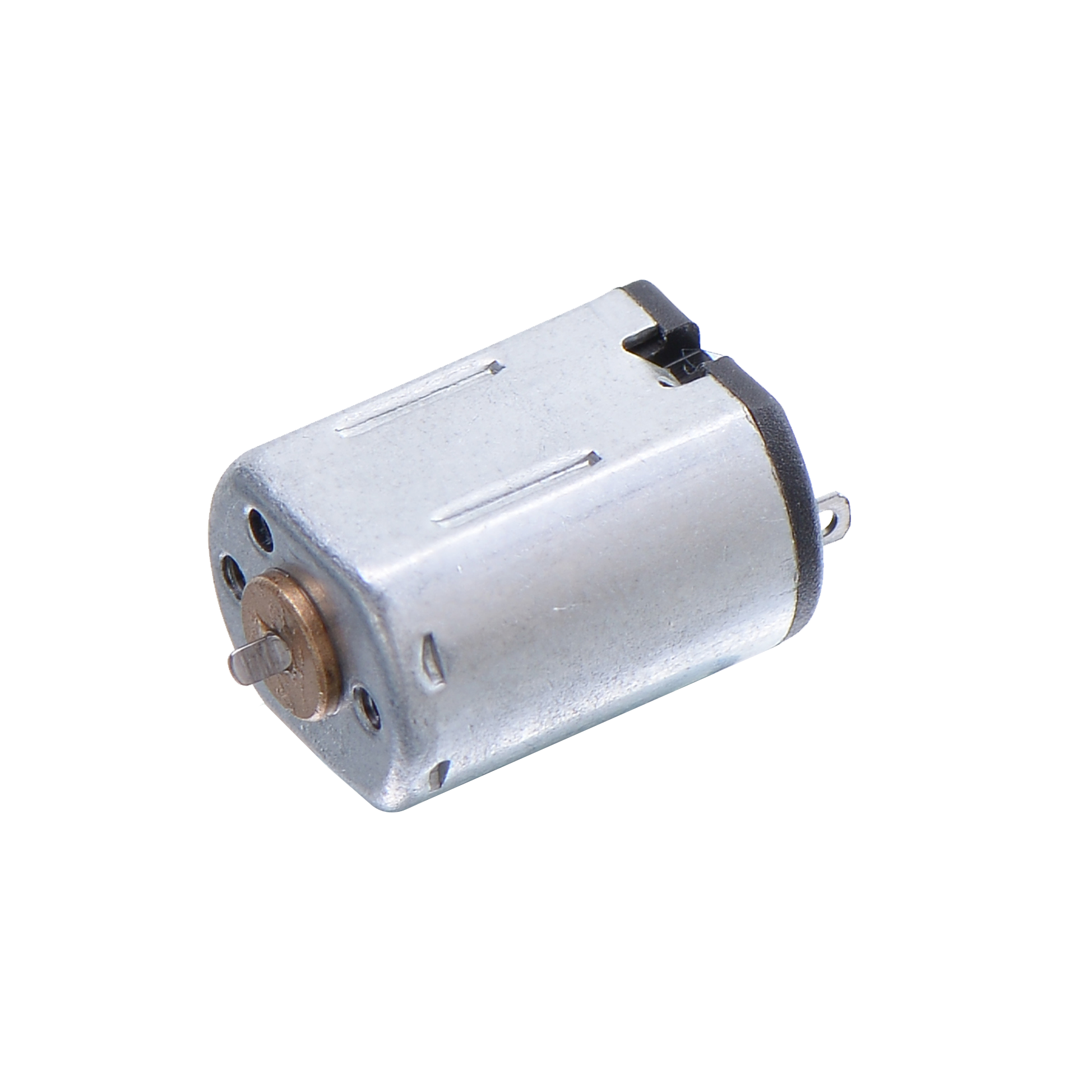

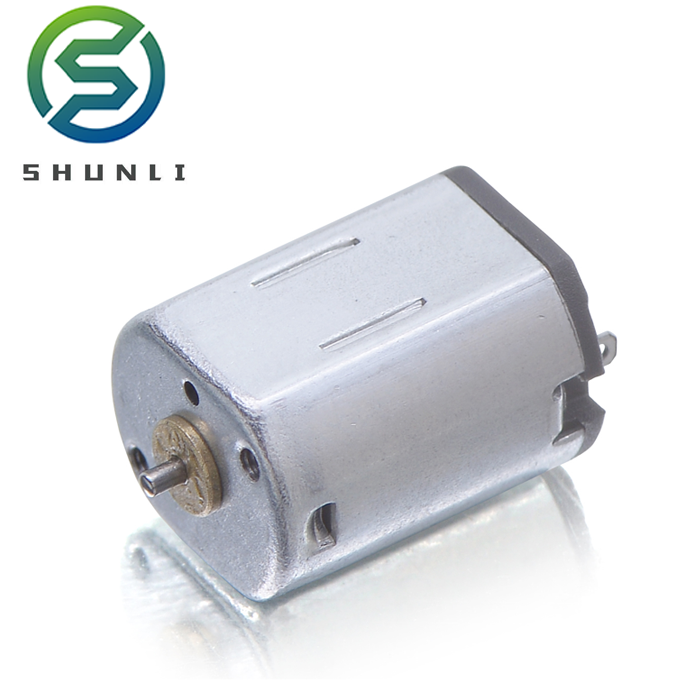

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor
Product Description
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Power (W) | Current (mA) | Torque (mN.m / gf.cm) | ||
| FF-N20VA | 05240 | 3.0~12.0 | 12 VDC | 16100 | 15 | 12240 | 60 | 0.3/3 | 0.37 | 210 | 1.2/12 |
| 08260 | 2.0~5.0 | 5 VDC | 14600 | 30 | 11800 | 110 | 0.26/2.6 | 0.31 | 470 | 1.3/13 | |
| FF-N20TA | 2818 | 0.8~1.5 | 12 VDC | 34000 | 70 | 31000 | 1140 | 0.2/2 | 0.64 | 6000 | 1.6/16 |
Application Areas
Certifications
Why Choose Us

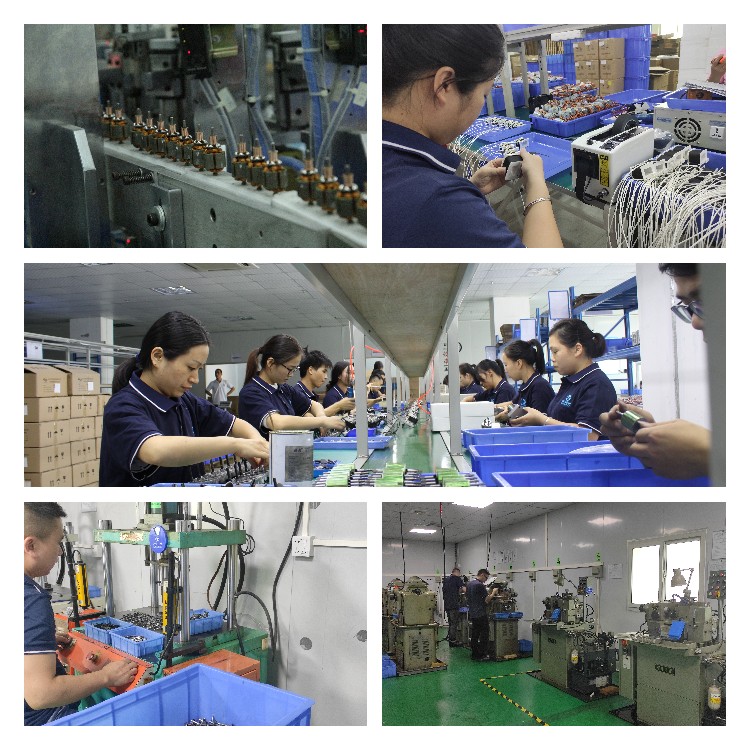

Factory Expertise
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant business experience.
Strict Quality Control
In order to confirm quality, every step from material receipt to shipment is carefully checked. Quality is the basis of our development.
Our Services
Gold seller status in possession of high credibility.
100% on-time delivery rate ensuring your product arrives timely.
Standard samples produced within 2 weeks; customized samples within 3 weeks.
Timely response: all messages replied within 2 hours.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can arrange an Online Trade Assurance Order for our new customers, supporting online payment via Credit Cards (Visa, MasterCard, etc.), PayPal, or T/T wire transfer.
Can you customize the motor if I cannot find a suitable model on the website?
Yes, we can customize parameters such as voltage, speed, torque, and output shaft configurations based on your specific requirements.
Do you have certificates for the motors?
Yes, we possess CE, FCC, ISO, and other relevant industry certifications. We can also assist in obtaining other specific certifications upon request.

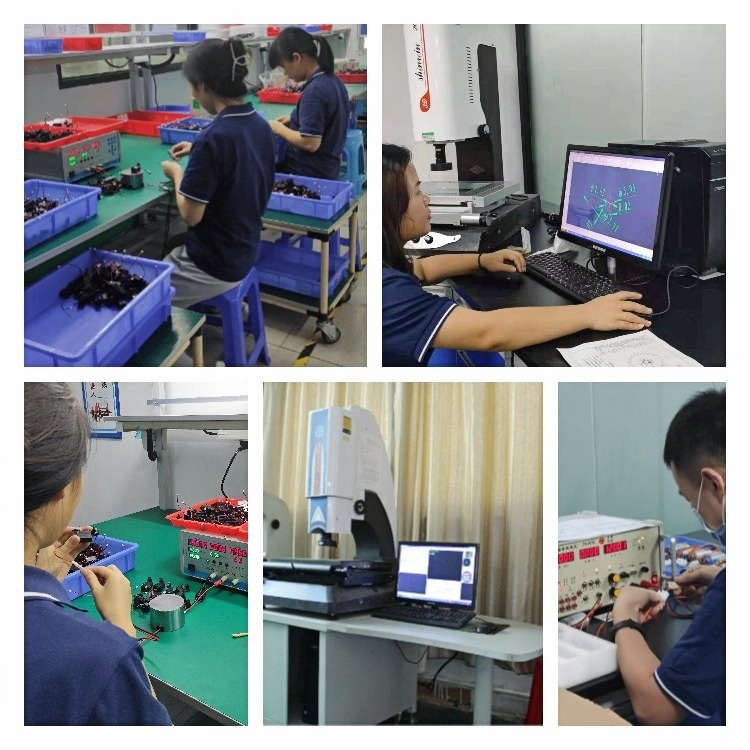

How do you handle Quality Control?
We employ professional inspectors at every process of the production lines. Finished motors undergo testing using professional machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
What is the turnaround time for sample production?
Standard samples are typically prepared and produced within 2 weeks, while customized specifications or complicated samples will be delivered within 3 weeks.
