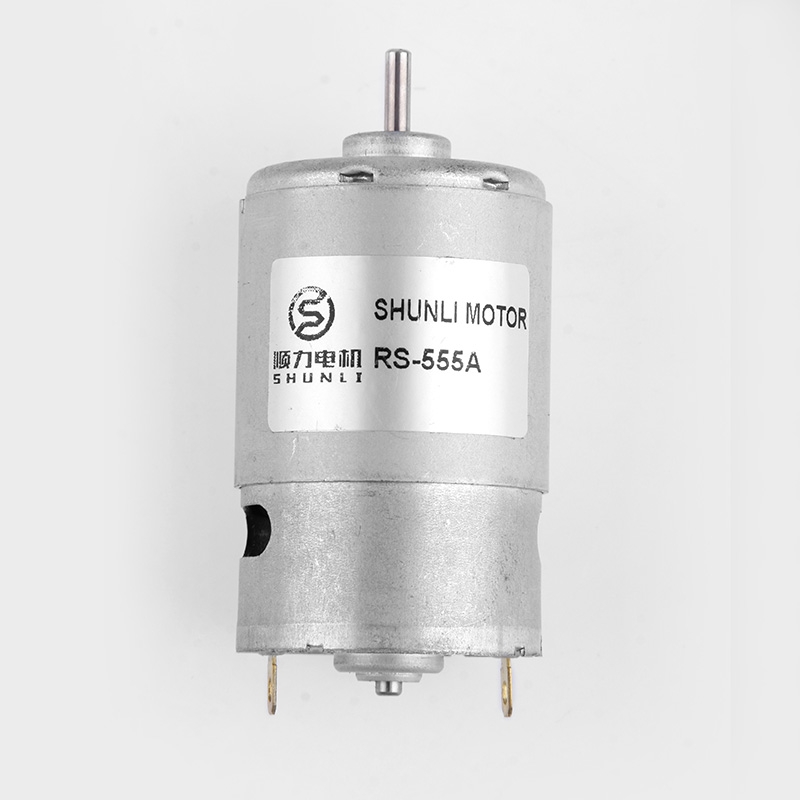

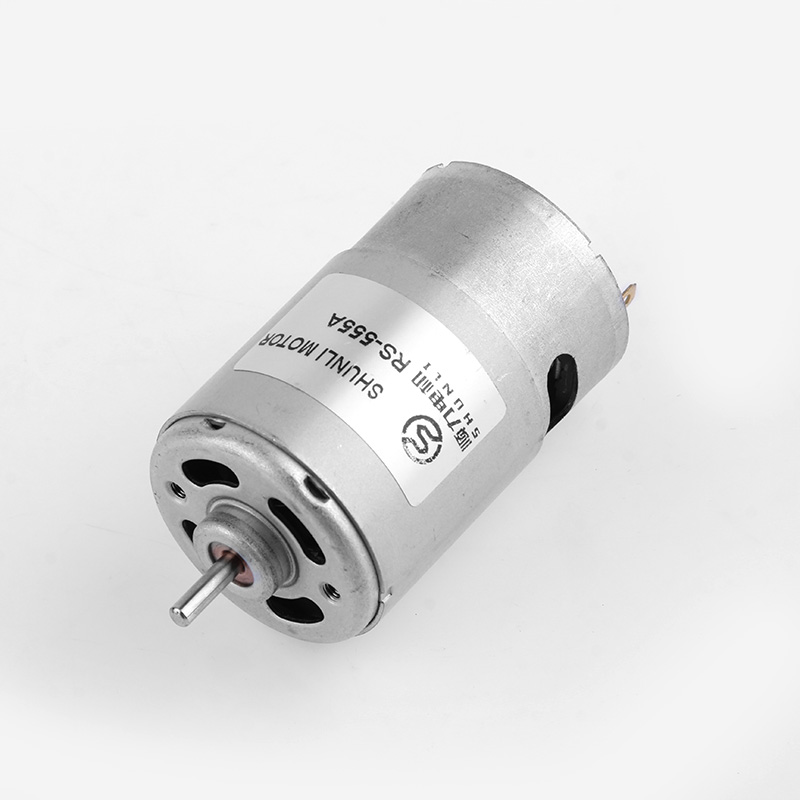

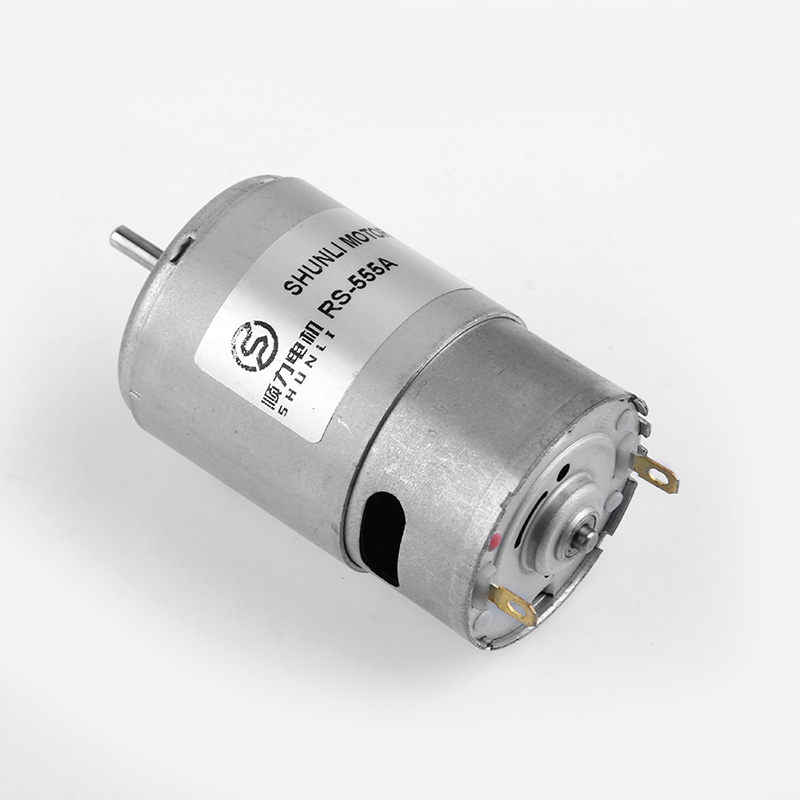

Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Product Description
Small Size High Power High RPM 12V 24V Gear Motor for Vacuum Cleaner / Cordless Power Tools / Sewing Machine
Promotion
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |
Application
Customer Evaluation
Certifications
Recommend Product
FAQ
1Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor more than 14 years.
2What is the payment term for new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
3I can't find suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
4Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
5How is your Quality Control process?
We have professional checking staff on every production line process.
6What testing equipment do you use for quality assurance?
After finishing the whole motor, we have entire quality machines to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
