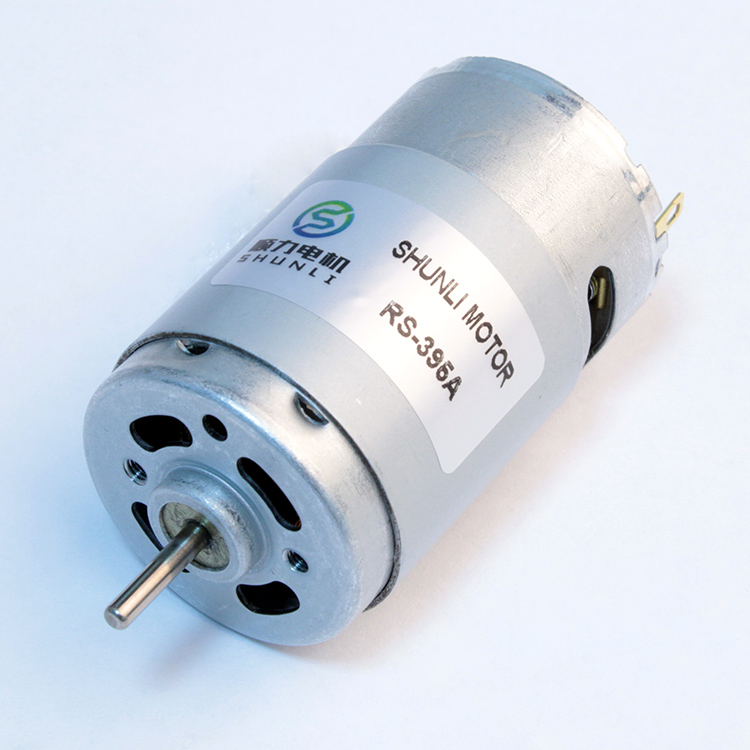

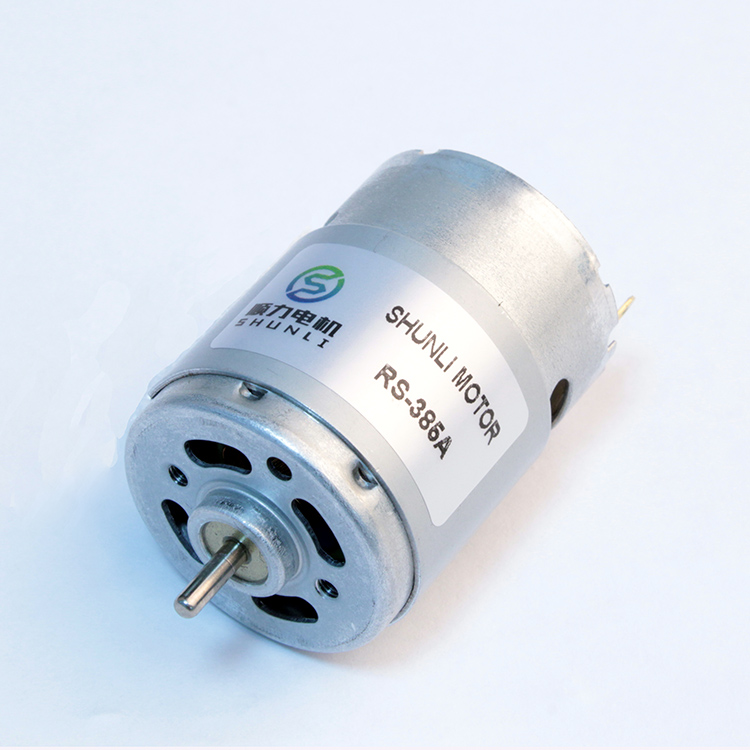

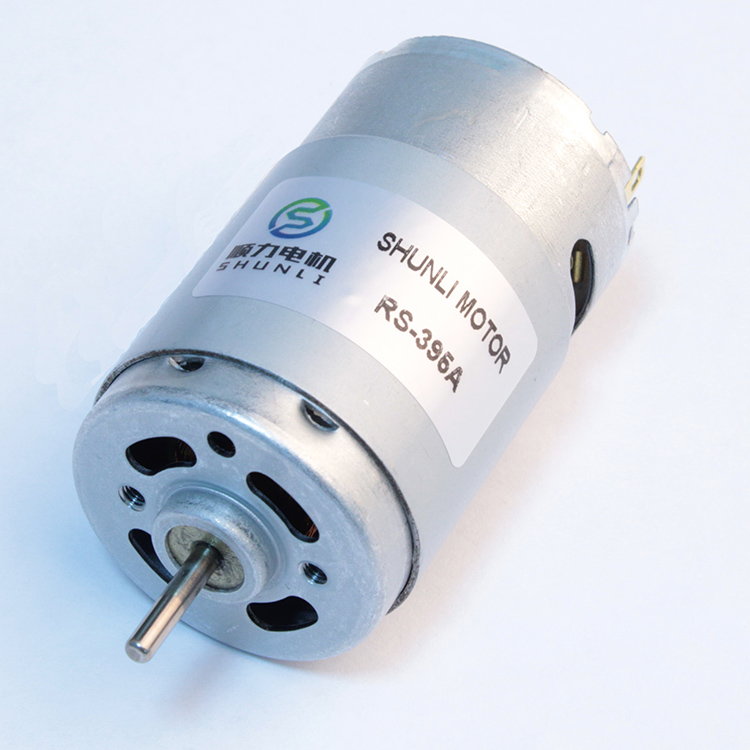

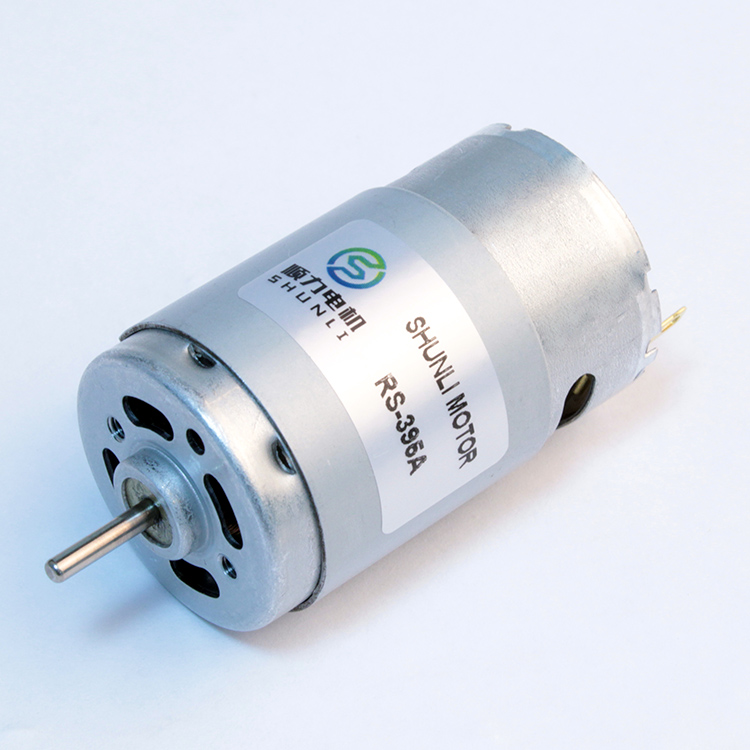

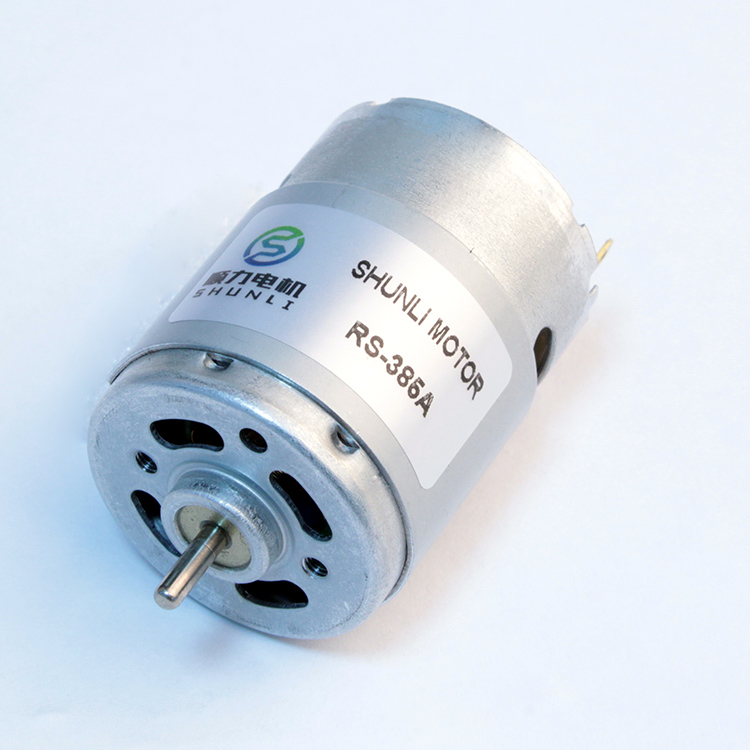

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Product Description
Product Description
RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Motor Customized Specification, Please contact me.
The length of shaft can be customized, Please contact me.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
Recommend Product
Looking forward to your feedback!
Frequently Asked Questions
QWhat is the operating voltage range of the RS-380 and RS-385 DC motors?
The RS-380 and RS-385 micro DC motors typically operate within a voltage range of 12V to 24V, offering high speed and large torque suitable for various applications.
QCan the shaft length of these micro DC motors be customized?
Yes, the length of the shaft can be fully customized according to your specific project needs. Please provide your design requirements when contacting us.
QWhat are the main applications for these PMDC motors?
These motors are highly versatile and commonly used in high-speed, large-torque applications such as electric drills, garden tools, and various toy models.
QWhat is the typical speed range for these models?
Depending on the specific configurations and voltage input, these motors can reach high operating speeds of up to 13,000 RPM.
QWhere can I find reference drawings and technical data?
Detailed technical specifications, including dimensional reference drawings for RS-365, RS-385, and RS-395 models, are provided in the datasheet sections above.
QHow can I request customized electrical specifications?
Custom electrical parameters, including rated voltage, speed, and torque, can be configured to match your system requirements. Please get in touch with your detailed target specification sheet.
