Valex Motor
Manufacturer Worm 755 Dc Motor 6 Volt Gear Small Micro 12v 15000rpm Permanent Magnet Brush Home Appliance
Product Description

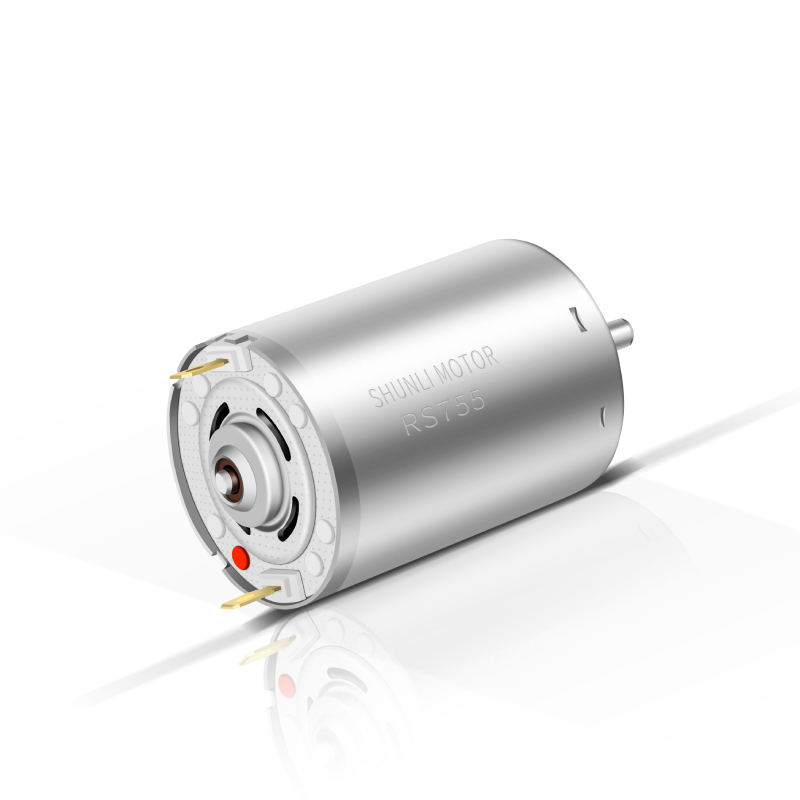

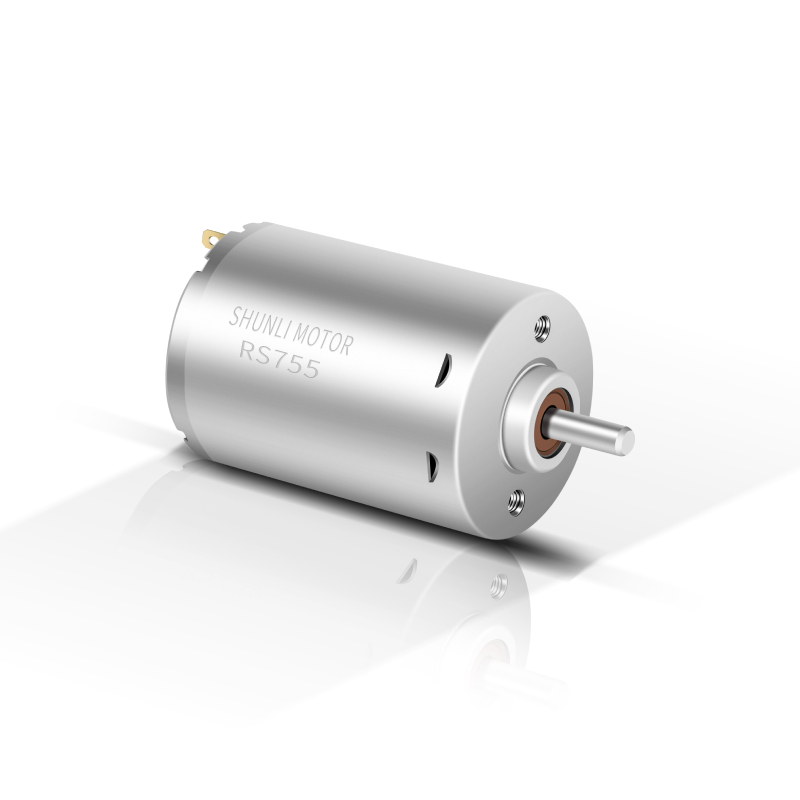

6v 12v High RPM 9000rpm 15000rpm 750/755 DC Motor
Product Details
Motor Customized Specification, Please contact us.

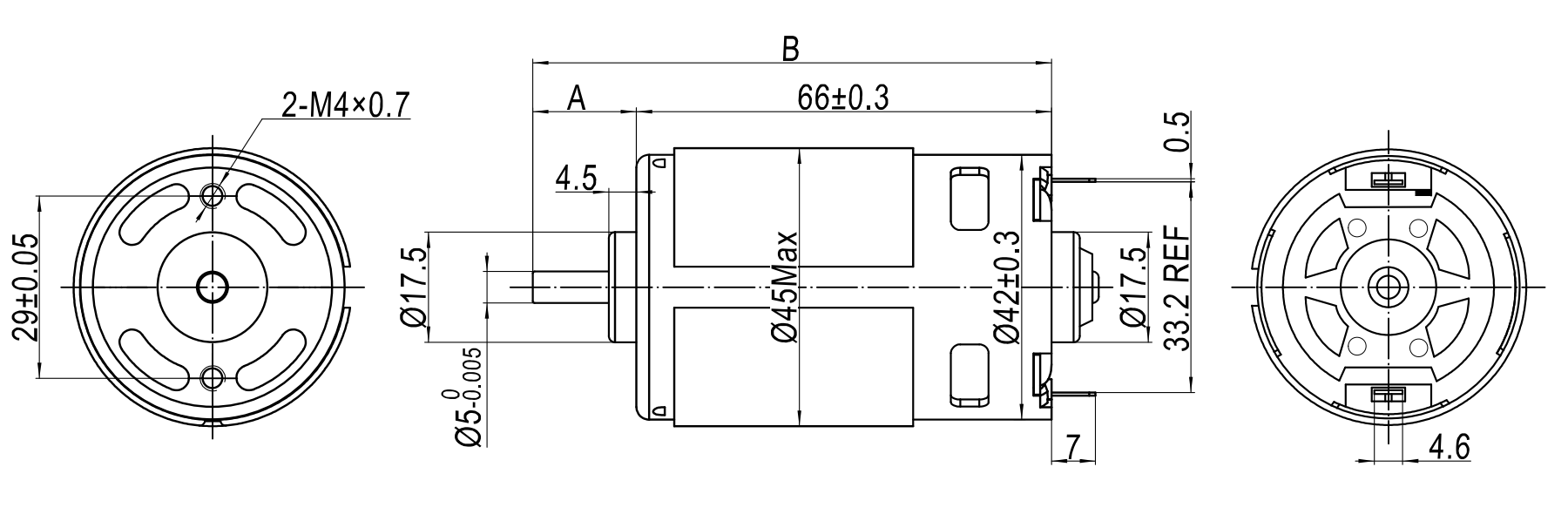

------ RS - 755 H
------ RS - 775 H
The length of shaft can be customized, Please contact us.
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-750H | 7032R | 6.0~12.0 | 12 VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6/496 | 66.6 | 55.6 | 393.1/4010 |
| RS-755H | 7512R | 3.0~6.0 | 6 VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1/460 | 38.2 | 66.34 | 306.9/3130 |
1. Professional Manufacturing Strength
We are a factory specialized in producing motors for more than 14 years, supported by three advanced production facilities, a professional R&D team, mature management, and highly experienced engineers to guarantee a pleasant experience.
2. Rigorous Quality Control
In order to confirm product quality, every step of the process—from the initial material intake to final shipment—is carefully checked and monitored. Quality is the core foundation of our development.
3. Our Service Commitments
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can set up an Assurance Order online for new customers, which can be paid online via MasterCard, Visa, etc. Customers can also choose to pay with PayPal or T/T.
I cannot find a suitable motor on your website. Can you customize the motor for me?
Yes, we can customize motor parameters such as voltage, speed, torque, and shaft details based on our customers' specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other key industry standards. If you have other specific certificate requirements, we can apply for them for you.
How is your Quality Control managed?
We have dedicated inspection staff on every production line process. Once assembled, every motor is tested using comprehensive quality control machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.
What is the typical lead time for custom production orders?
Standard samples are processed within 2 weeks, customized samples are finalized within 3 weeks, and mass production timelines vary based on quantities but are strictly managed for on-time delivery.
Looking forward to your feedback!
